3-1718324-1 | TE Connectivity

Plug, 62 pole, straight, 4 rows, blue, 3-1718324-1

Order No.: 71P7581
EAN: 4099889457414
MPN:
3-1718324-1
Series: LEAVYSEAL

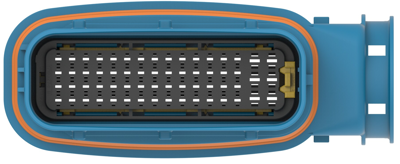

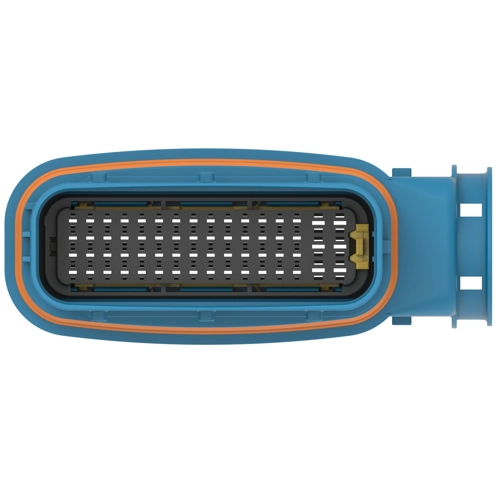

3-1718324-1 TE Connectivity Automotive Power Connectors Image 1

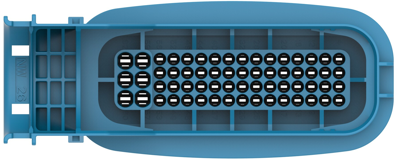

3-1718324-1 TE Connectivity Automotive Power Connectors Image 2

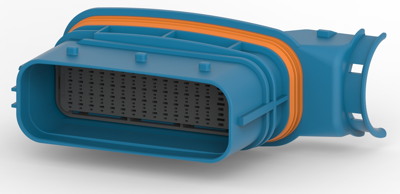

3-1718324-1 TE Connectivity Automotive Power Connectors Image 3

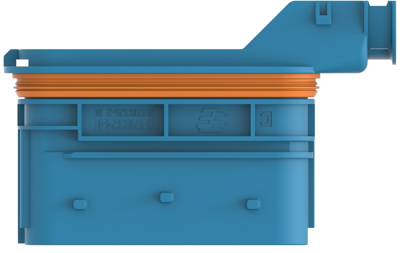

3-1718324-1 TE Connectivity Automotive Power Connectors Image 4

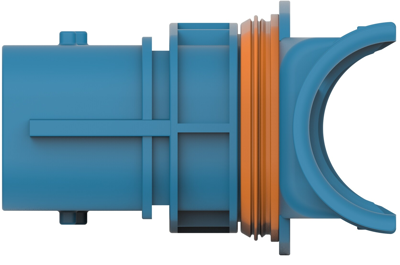

3-1718324-1 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
18.5402 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
18.54 € *
Price list
Quantity
Price per unit*
1 pcs.
18.5402 €
10 pcs.
17.0646 €
25 pcs.
15.3510 €
50 pcs.
13.8159 €
*incl. VAT plus shipping costs
Subject to prior sale

Rectangular plug housing, 3-1718324-1, TE Connectivity

Housing for male terminal, Wire-to-Wire, 62 Position, 5 mm/4 mm Centerline, Sealable, Blue, Signal, Panel mount.

Technical specifications
Colour blue
Type of locking Yes
Rated current 40 A
Grid 4 mm
Pin number 62 pole
Version straight
Connection crimp connection
Contact type tab
Rated voltage 36 V
Number of rows 4
Logistics
Country of origin CZ
Customs tariff number 85389099
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
