3-1437290-7 | TE Connectivity

Socket, unequipped, 26 pole, straight, 4 rows, black, 3-1437290-7

Order No.: 36P4313
EAN: 4099889906189
MPN:
3-1437290-7
Series: SUPERSEAL 1.0

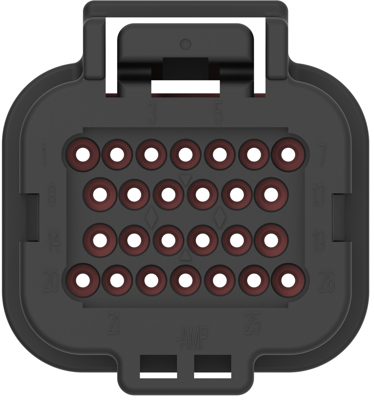

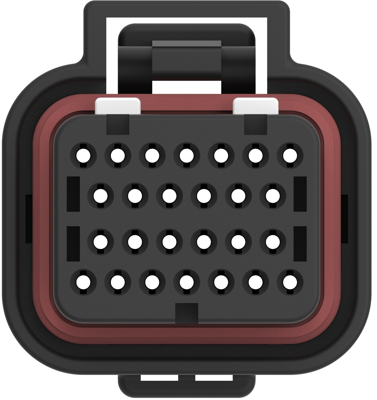

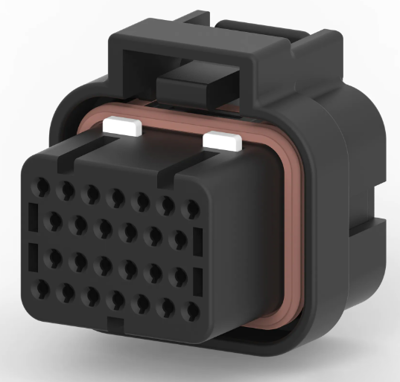

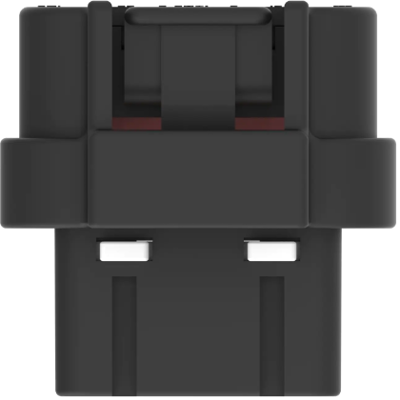

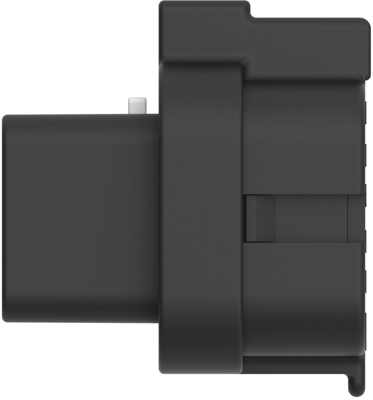

3-1437290-7 TE Connectivity Automotive Power Connectors Image 1
3-1437290-7 TE Connectivity Automotive Power Connectors Image 2
3-1437290-7 TE Connectivity Automotive Power Connectors Image 3
3-1437290-7 TE Connectivity Automotive Power Connectors Image 4
3-1437290-7 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
12.9353 € *
Available: 13 pcs.
Available in 5 Days: 400 pcs. - if ordered today
Total Price:
12.94 € *
Price list
Quantity
Price per unit*
1 pcs.
12.9353 €
5 pcs.
12.2689 €
10 pcs.
11.4835 €
25 pcs.
10.4601 €
*incl. VAT plus shipping costs
Subject to prior sale

Housing terminals, 3-1437290-7, TE Connectivity

Housing for female terminals, Wire-to-board, Wire-to-device, 26 Position, 3 mm Centerline, Sealable, Black, SUPERSEAL 1.0mm

Technical specifications
Filter Property Value
Grid 3 mm
Connection crimp connection
Contact type socket
Rated current 15 A
Additional parts unequipped
Version straight
Pin number 26 pole
Type of locking Yes
Number of rows 4
Colour black
Rated voltage 250 V
Logistics
Property Value
Country of origin CZ
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
