3-1355397-3 | TE Connectivity

Socket, unequipped, 4 pole, straight, 1 row, blue, 3-1355397-3

Order No.: 36P1078
EAN: 4099889892994
MPN:
3-1355397-3

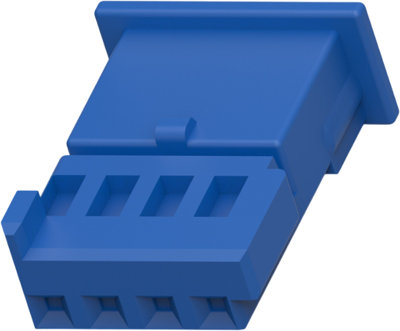

3-1355397-3 TE Connectivity Automotive Power Connectors Image 1

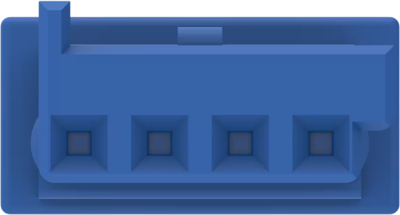

3-1355397-3 TE Connectivity Automotive Power Connectors Image 2
3-1355397-3 TE Connectivity Automotive Power Connectors Image 3

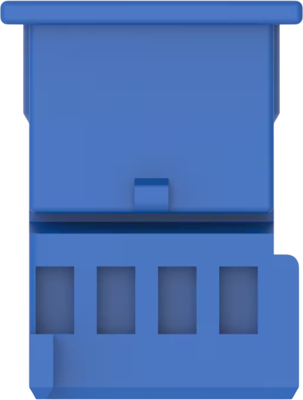

3-1355397-3 TE Connectivity Automotive Power Connectors Image 4

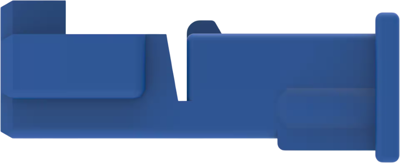

3-1355397-3 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
0.9282 € *
Available: 348 pcs.
Total Price:
4.64 € *
Price list
Quantity
Price per unit*
5 pcs.
0.9282 €
10 pcs.
0.8568 €
25 pcs.
0.7973 €
50 pcs.
0.7259 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket housing, 3-1355397-3, TE Connectivity

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 4, Number of rows: 1, Operating voltage: 12 VAC, Nominal voltage architecture: 12 V, Body material: PBT GF, Primary product color: blue, Connector code: C, Mating tab width: 0.63 mm, Mating alignment type: polarized, Centerline (pitch): 2.54 mm, Product height: 6.3 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Circuit application: signal, Packaging method: carton, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Filter Property Value
Grid 2.54 mm
Contact type socket
Version straight
Rated current 7.5 A
Rated voltage 12 V
Type of locking Yes
Additional parts unequipped
Number of rows 1
Colour blue
Pin number 4 pole
Connection crimp connection
Logistics
Property Value
Country of origin CH
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
