284844-3 | TE Connectivity

Plug, unequipped, 12 pole, straight, 2 rows, black, 284844-3

Order No.: 35P8835
EAN: 4099889888027
MPN:
284844-3

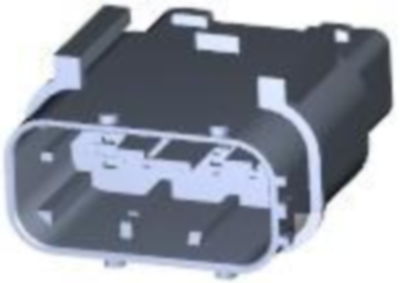

284844-3 TE Connectivity Automotive Power Connectors Image 1

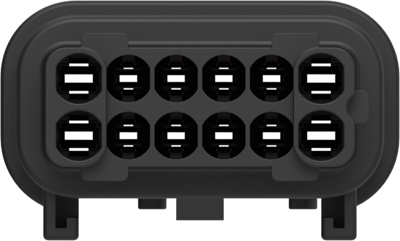

284844-3 TE Connectivity Automotive Power Connectors Image 2

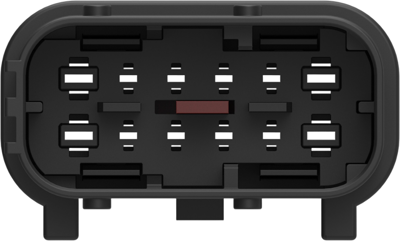

284844-3 TE Connectivity Automotive Power Connectors Image 3

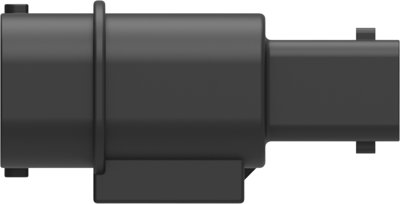

284844-3 TE Connectivity Automotive Power Connectors Image 4

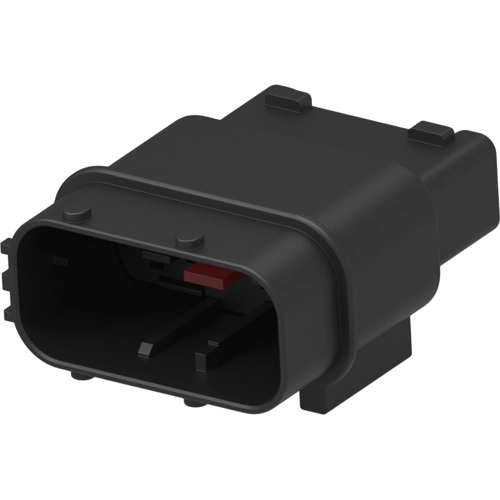

284844-3 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.6779 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
1.68 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.6779 €

Plug housing, 284844-3, TE Connectivity

Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: yes, Primary locking feature: on the terminal, Number of positions: 12, Number of rows: 2, Operating voltage: 24 VDC, Nominal voltage architecture: 12 V, 24 V, Body material: PA GF, Primary product color: black, Mating tab width: 1.6 mm, 2.8 mm, Strain relief: no, Centerline (pitch): 5 mm, Row-to-row spacing: 4.8 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, Operating temperature range: -25-125 °C, Circuit application: signal, Packaging method: box, Serviceable: no, Connector position assurance capable: no

Technical specifications
Version straight
Colour black
Type of locking Yes
Rated voltage 24 V
Pin number 12 pole
Connection crimp connection
Grid 5 mm
Number of rows 2
Rated current 20 A
Contact type plug
Additional parts unequipped
Logistics
Customs tariff number 85389091
Country of origin MX
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
