282993-4 | TE Connectivity

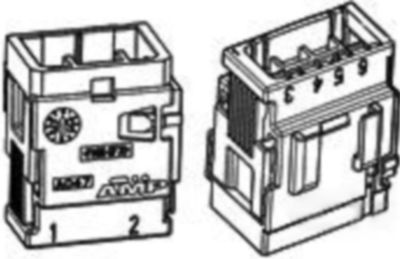

Plug, unequipped, 12 pole, straight, 2 rows, gray, 282993-4
Order No.: 36P1583
EAN: 4099889895995
MPN:
282993-4
Unit Price (€ / pc.)
3.0702 € *
Available in 5 Days: 500 pcs. - if ordered today
Total Price:
3.07 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0702 €
10 pcs.
2.8441 €
25 pcs.
2.6537 €
50 pcs.
2.4157 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug housing, 282993-4, TE Connectivity
Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 12, Number of rows: 2, Operating voltage: 24 VDC, Nominal voltage architecture: 12 V, 24 V, Body material: PA GF, Primary product color: gray, Mating alignment type: polarized, Centerline (pitch): 3.5 mm, 5.5 mm, Row-to-row spacing: 5.9 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Packaging method: box, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | crimp connection | |
| Colour | gray | |
| Additional parts | unequipped | |
| Pin number | 12 pole | |
| Contact type | plug | |
| Type of locking | Yes | |
| Rated voltage | 24 V | |
| Version | straight | |
| Number of rows | 2 | |
| Grid | 3.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
