282993-3 | TE Connectivity

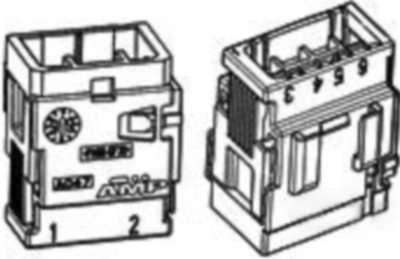

Plug, unequipped, 12 pole, straight, 2 rows, blue, 282993-3
Order No.: 36P1634
EAN: 4099889896275
MPN:
282993-3
Unit Price (€ / pc.)
1.5946 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
7.97 € *
Price list
Quantity
Price per unit*
5 pcs.
1.5946 €
10 pcs.
1.4756 €
25 pcs.
1.3804 €
50 pcs.
1.2495 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug housing, 282993-3, TE Connectivity
Row-to-row spacing: 5.9 mm, Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Number of positions: 12, Number of rows: 2, Nominal voltage architecture: 12 V, 24 V, Operating voltage: 24 VDC, Cable exit angle: 180°, Body material: PA GF, Primary product color: blue, Mounting feature: without, Polarized, Centerline (pitch): 3.5 mm, 5.5 mm, Height: 17.2 mm, Length: 35.5 mm, Width: 31.4 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Packaging method: box, Packaging quantity: 1000, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.5 mm | |
| Contact type | plug | |
| Version | straight | |
| Rated current | 14 A | |
| Rated voltage | 24 V | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Number of rows | 2 | |
| Colour | blue | |
| Pin number | 12 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
