282993-2 | TE Connectivity

Plug, unequipped, 12 pole, straight, 2 rows, black, 282993-2

Order No.: 36P1633
EAN: 4099889896268
MPN:
282993-2
282993-2 TE Connectivity Automotive Power Connectors Image 1

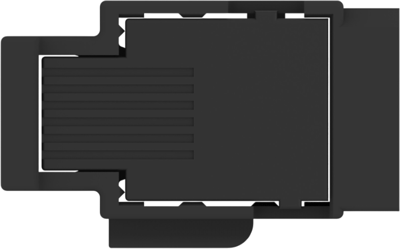

282993-2 TE Connectivity Automotive Power Connectors Image 2

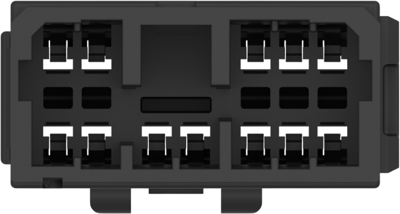

282993-2 TE Connectivity Automotive Power Connectors Image 3

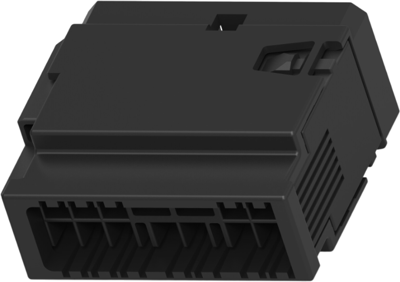

282993-2 TE Connectivity Automotive Power Connectors Image 4

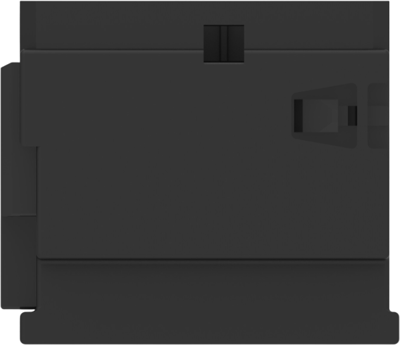

282993-2 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.7612 € *
Available in 5 Days: 1,000 pcs. - if ordered today
Total Price:
1.76 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7612 €
10 pcs.
1.6065 €
50 pcs.
1.4399 €
100 pcs.
1.2971 €
*incl. VAT plus shipping costs
Subject to prior sale

Plug housing, 282993-2, TE Connectivity

Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 12, Number of rows: 2, Operating voltage: 24 VDC, Nominal voltage architecture: 12 V, 24 V, Body material: PA GF, Primary product color: black, Mating alignment type: polarized, Centerline (pitch): 3.5 mm, 5.5 mm, Row-to-row spacing: 5.9 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Packaging method: box, Serviceable: no, Connector position assurance capable: no

Technical specifications
Version straight
Colour black
Type of locking Yes
Rated voltage 24 V
Pin number 12 pole
Connection crimp connection
Grid 3.5 mm
Number of rows 2
Rated current 14 A
Contact type plug
Additional parts unequipped
Logistics
Customs tariff number 85389091
Country of origin US
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
