2822343-3 | TE Connectivity

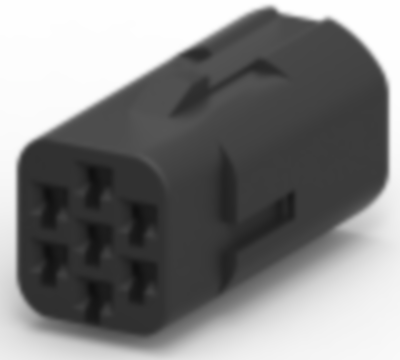

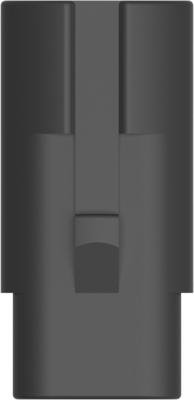

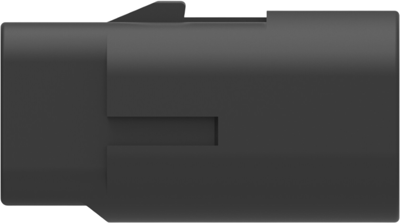

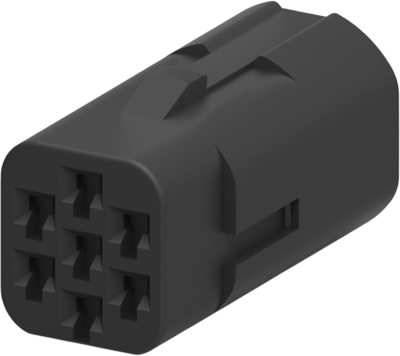

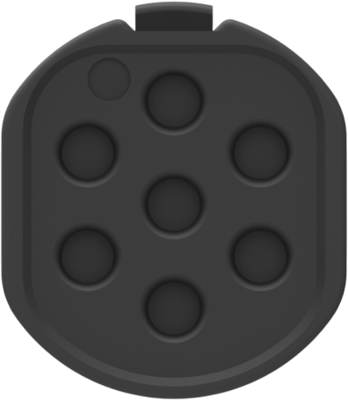

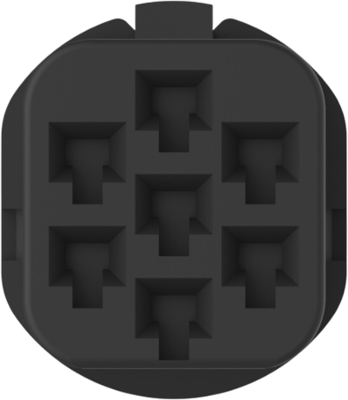

Socket, unequipped, 7 pole, straight, 3 rows, black, 2822343-3
Unit Price (€ / pc.)
3.7961 € *
Available in 5 Days: 1,425 pcs. - if ordered today
Total Price:
3.80 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7961 €
10 pcs.
3.5224 €
25 pcs.
3.2963 €
50 pcs.
2.9988 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket housing, 2822343-3, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 7, Body material: PBT, Primary product color: black, Mating tab width: 0.8 mm, Mating alignment type: polarized, Centerline (pitch): 2 mm, Product height: 16.5 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -40-105 °C, Circuit application: signal, Packaging method: bag, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.4 mm | |
| Contact type | socket | |
| Version | straight | |
| Rated voltage | 250 V | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Number of rows | 3 | |
| Colour | black | |
| Pin number | 7 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
