2822343-1 | TE Connectivity

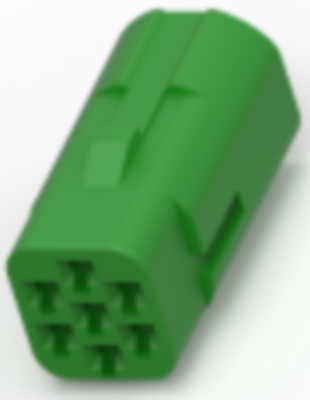

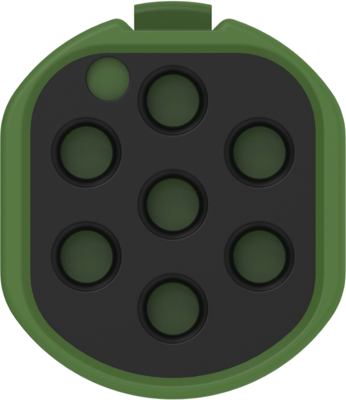

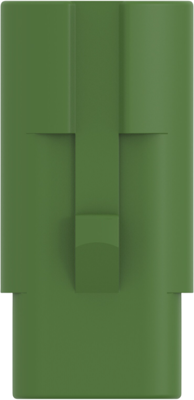

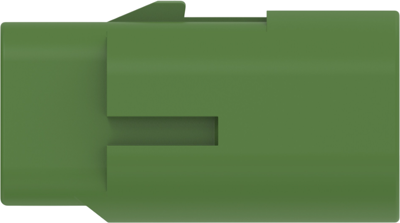

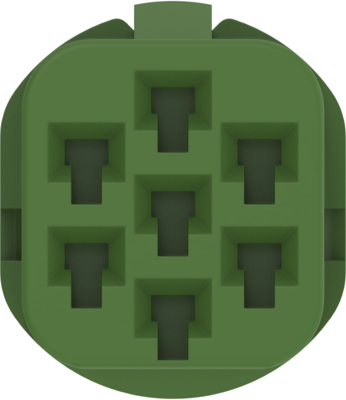

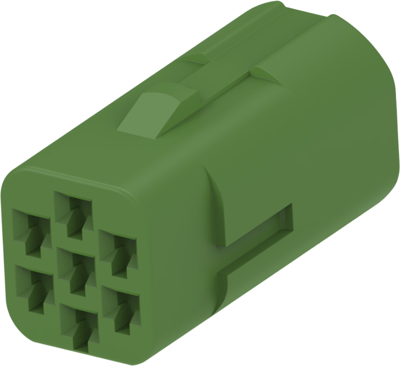

Socket, unequipped, 7 pole, straight, 3 rows, green, 2822343-1
Unit Price (€ / pc.)
2.0944 € *
Available in 5 Days: 1,279 pcs. - if ordered today
Total Price:
10.47 € *
Price list
Quantity
Price per unit*
5 pcs.
2.0944 €
10 pcs.
1.9397 €
25 pcs.
1.8088 €
50 pcs.
1.6422 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket housing, 2822343-1, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 7, Number of rows: 3, Body material: PBT, Primary product color: green, Mating tab width: 8 mm, Mating alignment type: polarized, Centerline (pitch): 2 mm, Product height: 16.5 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -40-105 °C, Circuit application: power, Packaging method: bag, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2 mm | |
| Contact type | socket | |
| Version | straight | |
| Rated voltage | 250 V | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Number of rows | 3 | |
| Colour | green | |
| Pin number | 7 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
