2286003-3 | TE Connectivity
Connector, 2 pole, straight, 1 row, natural, 2286003-3
Unit Price (€ / pc.)
3.0940 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
3.09 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0940 €
10 pcs.
2.8679 €
25 pcs.
2.6775 €
50 pcs.
2.4395 €
*incl. VAT plus shipping costs
Subject to prior sale

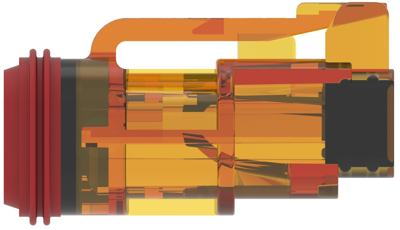

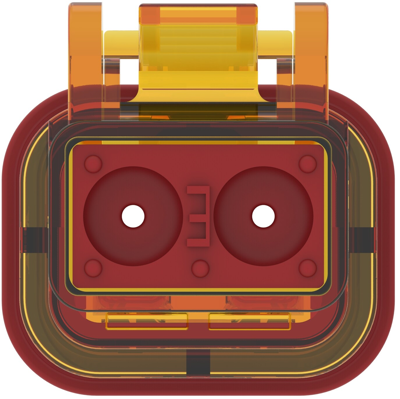

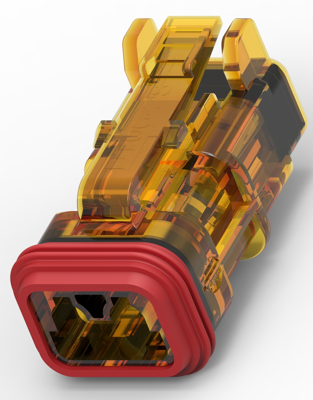

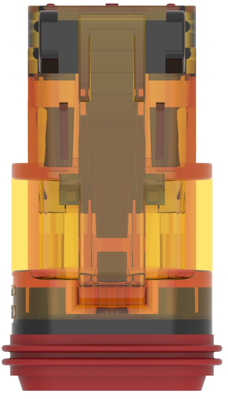

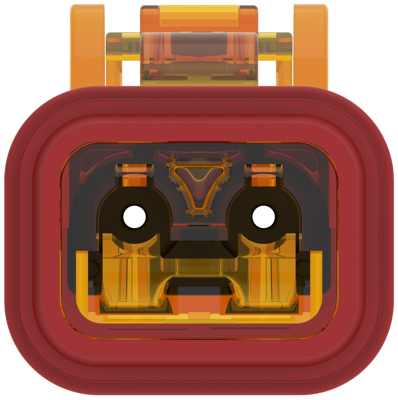

Sealed connector, 2286003-3, TE Connectivity
The 2286003-3 is a sealed connector for cable to cable and cable to board applications. This product is used in harsh environment applications where even a small degradation in connection may be critical. Thermoplastic housing offers a wide operating temperature range and silicone rear wire and interface seal allows the connector to withstand conditions of extreme temperature and moisture. It offers field proven reliability and rugged quality, also includes optional flange mounting, multi-pin arrangements, and design flexibility.
Features
- Rectangular, thermoplastic housing
- Integrated latch for mating
- Wedge locks confirm contact alignment and retention
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of rows | 1 | |
| Rated current | 13 A | |
| Grid | 4.5 mm | |
| Pin number | 2 pole | |
| Rated voltage | 48 V | |
| Type of locking | Yes | |
| Connection | crimp connection | |
| Colour | natural | |
| Version | straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | MA |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
