2278584-1 | TE Connectivity

Socket, 67 pole, straight, 4 rows, black, 2278584-1

Order No.: 71P6302
EAN: 4099889450316
MPN:
2278584-1
Series: MCON

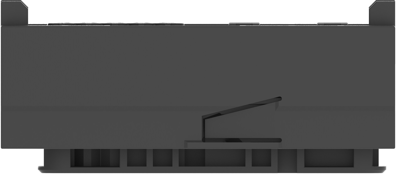

2278584-1 TE Connectivity Automotive Power Connectors Image 1

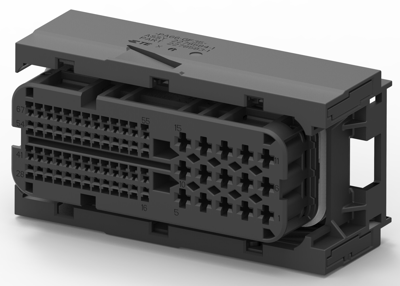

2278584-1 TE Connectivity Automotive Power Connectors Image 2

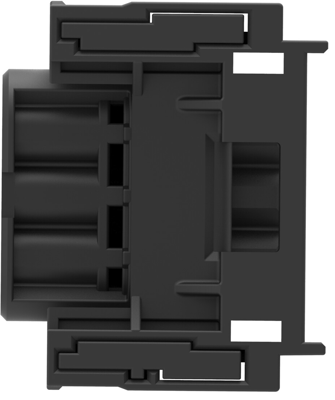

2278584-1 TE Connectivity Automotive Power Connectors Image 3

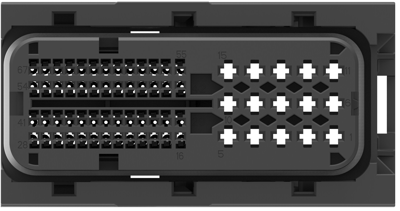

2278584-1 TE Connectivity Automotive Power Connectors Image 4
2278584-1 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
14.0539 € *
Available: 0 pcs.
Available in 5 Days: 4,645 pcs.
Leadtime: 19 Weeks **
Total Price:
14.05 € *
Price list
Quantity
Price per unit*
1 pcs.
14.0539 €
10 pcs.
12.9353 €
50 pcs.
11.6382 €
100 pcs.
10.4720 €
*incl. VAT plus shipping costs
**Subject to prior sale

Receptacle housing, 2278584-1, TE Connectivity

The 2278584-1 is a connector system that offers high reliability for use in the automotive industry with capability for waterproofing and resistance to conditions of extreme vibration. This product is designed for electronic and electrical applications in motor vehicles, where vibrations and mechanical stress, in the long term, can affect the quality on the contact system.

Features

  • High vibration level supported
  • Integrated secondary locking device delivered in pre-locked position
  • Polarization, several keyings
  • Locking mechanism for smaller connectors/ mating aid for higher numbers of ways
Technical specifications
Colour black
Type of locking Yes
Pin number 67 pole
Version straight
Contact type socket
Rated voltage 14 V
Number of rows 4
Logistics
Country of origin CN
Customs tariff number 85389099
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
