2208165-1 | TE Connectivity

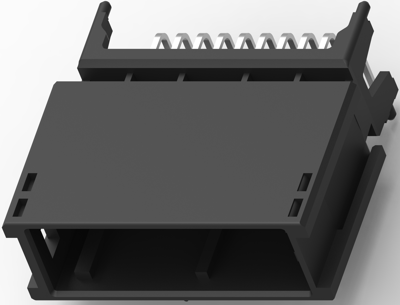

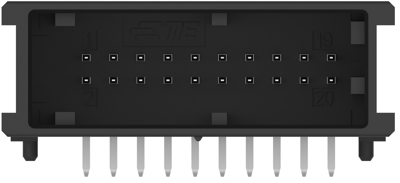

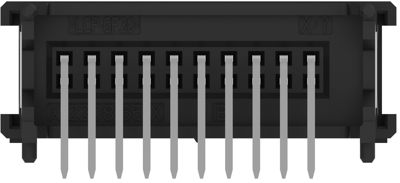

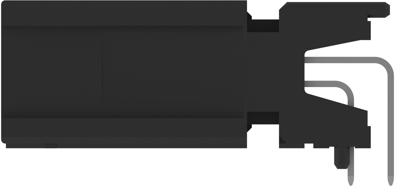

Plug, 20 pole, angled, 1 row, black, 2208165-1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
2.4871 € *
Standard delivery time from the manufacturer is: 21 Weeks
Hybrid header, 2208165-1, TE Connectivity
Hybrid header: no, Connector system: wire-to-board, Sealable: no, Number of signal positions: 20, Number of positions: 20, PCB mount orientation: horizontal, Number of rows: 2, Primary product color: black, Mating tab width: 0.5 mm, Mating tab thickness: 0.4 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention: without, Centerline (pitch): 1.8 mm, Width: 23.15 mm, Circuit application: signal, Packaging quantity: 195, Interface number: 114-94000-11
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | plug | |
| Pin number | 20 pole | |
| Version | angled | |
| Grid | 1.8 mm | |
| Connection | solder connection | |
| Number of rows | 1 | |
| contact surface | tin-plated | |
| Type of locking | Yes | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
