2141648-1 | TE Connectivity

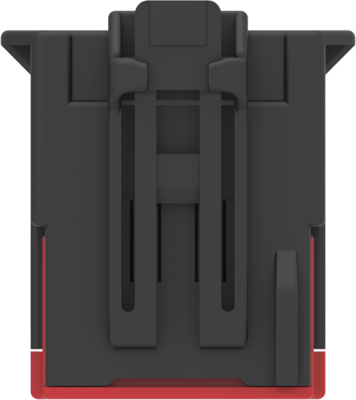

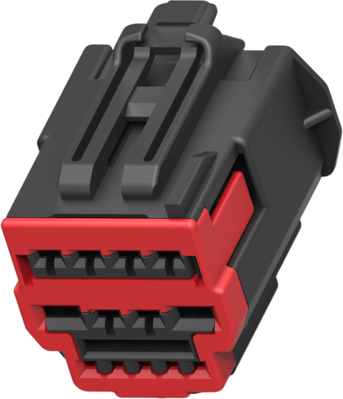

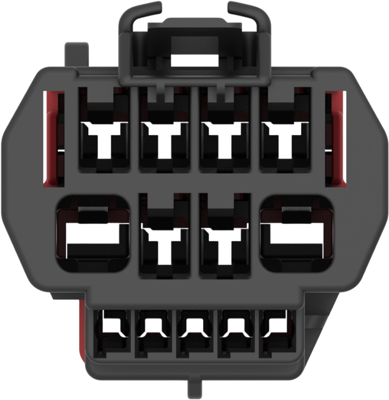

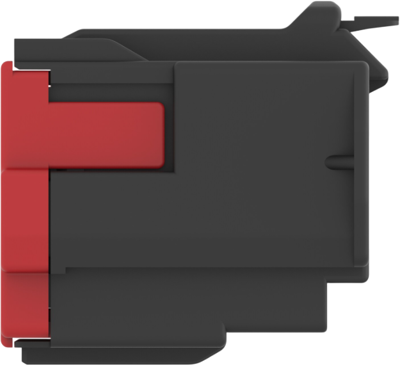

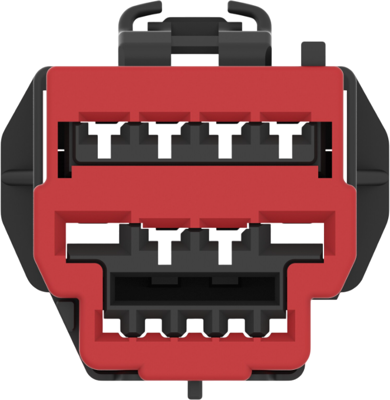

Socket, unequipped, 13 pole, straight, 3 rows, black, 2141648-1
Order No.: 35P9402
EAN: 4099889889550
MPN:
2141648-1
Unit Price (€ / pc.)
1.7612 € *
Available in 5 Days: 1,552 pcs. - if ordered today
Total Price:
8.81 € *
Price list
Quantity
Price per unit*
5 pcs.
1.7612 €
10 pcs.
1.6303 €
25 pcs.
1.5232 €
50 pcs.
1.3804 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket housing, 2141648-1, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: yes, Primary locking feature: integrated in housing, Number of positions: 13, Number of rows: 3, Operating voltage: 14 VDC, Nominal voltage architecture: 12 V, Body material: PA GF, Primary product color: black, Mating tab width: 0.64 mm, 1.5 mm, 2.8 mm, Strain relief: no, Centerline (pitch): 2.54 mm, 3.7 mm, 4.4 mm, Row-to-row spacing: 5.9 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, Operating temperature range: -40-100 °C, Circuit application: signal, Packaging method: box, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Contact type | socket | |
| Version | straight | |
| Rated voltage | 14 V | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Number of rows | 3 | |
| Colour | black | |
| Pin number | 13 pole |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85389011 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
