2141508-1 | TE Connectivity

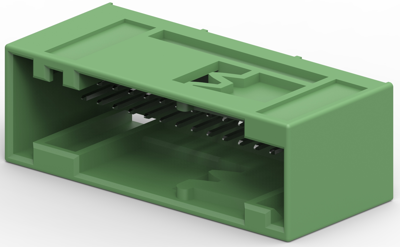

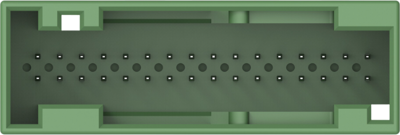

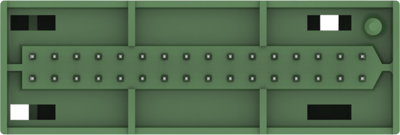

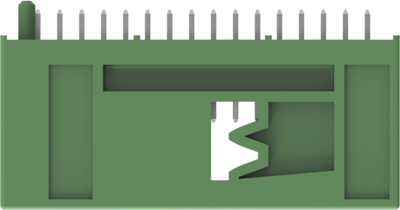

Plug, 32 pole, straight, 2 rows, green, 2141508-1
Order No.: 36P2565
EAN: 4099889897890
MPN:
2141508-1
Unit Price (€ / pc.)
3.5343 € *
Standard delivery time from the manufacturer is: 14 Weeks
PCB mount header, 2141508-1, TE Connectivity
Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 32, Number of positions: 32, PCB mount orientation: vertical, Number of rows: 2, Operating voltage: 12 VDC, Primary product color: green, Mating tab width: 0.63 mm, Mating tab thickness: 0.63 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention: without, Centerline (pitch): 2.54 mm, Product length: 46.2 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, Operating temperature range: -40-110 °C, Shielded: no, Circuit application: signal, UL flammability rating: UL 94HB, Packaging type: tray
Technical specifications
| Version | straight | |
| Colour | green | |
| Type of locking | Yes | |
| Rated voltage | 12 V | |
| contact surface | tin-plated | |
| Pin number | 32 pole | |
| Connection | solder connection | |
| Grid | 2.54 mm | |
| Number of rows | 2 | |
| Contact type | plug |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | JP |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
