2141501-1 | TE Connectivity
Socket, 3 pole, straight, 1 row, black, 2141501-1
Order No.: 71P4838
EAN: 4099889449778
MPN:
2141501-1
Unit Price (€ / pc.)
2.6775 € *
Available in 5 Days: 1,356 pcs. - if ordered today
Total Price:
2.68 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6775 €
10 pcs.
2.4871 €
25 pcs.
2.3205 €
50 pcs.
2.1063 €
*incl. VAT plus shipping costs
Subject to prior sale

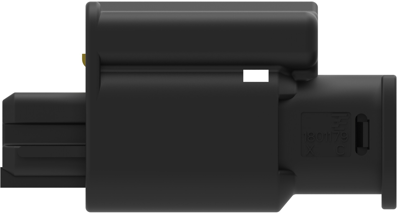

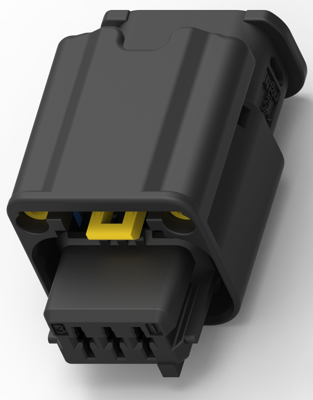

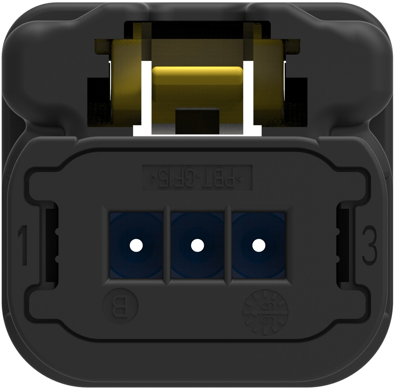

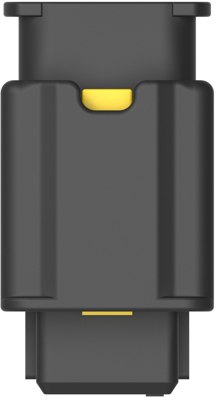

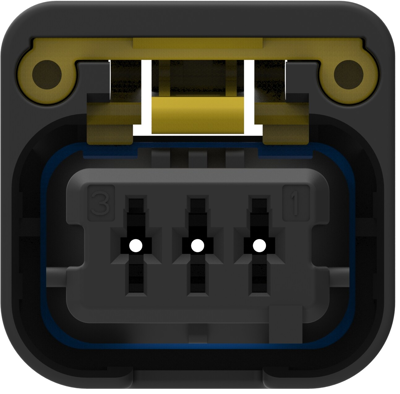

Receptacle housing, 2141501-1, TE Connectivity
Housing for female terminalss, Wire-to-Wire, 3 Position, 3.33 mm Centerline, Sealable, Black, Wire & Cable, Power, Cable mount (Free-Hanging).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of rows | 1 | |
| Type of locking | Yes | |
| Pin number | 3 pole | |
| Colour | black | |
| Connection | crimp connection | |
| Grid | 3.33 mm | |
| Rated voltage | 14 V | |
| Rated current | 16 A | |
| Contact type | socket | |
| Version | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
