2141467-2 | TE Connectivity

Socket, unequipped, 2 pole, straight, 1 row, gray, 2141467-2

Order No.: 35P9922
EAN: 4099889891089
MPN:
2141467-2
Series: MQS
2141467-2 TE Connectivity Automotive Power Connectors

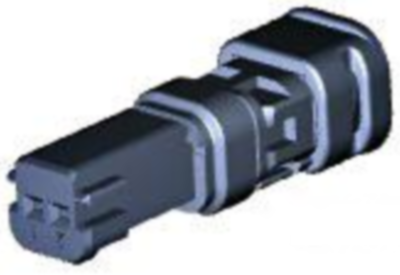

Image may differ
Unit Price (€ / pc.)
1.7969 € *
Available: 0 pcs.
Available in 5 Days: 12,646 pcs.
Leadtime: 29 Weeks **
Total Price:
1.80 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1.7969 €

Socket housing, 2141467-2, TE Connectivity

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 2, Number of rows: 1, Cable exit angle: 180°, Body material: PBT GF, Primary product color: gray, Connector code: A, Mating tab width: 0.5 mm, Mounting feature: without, Polarized, Centerline (pitch): 1.8 mm, Height: 8.2 mm, Length: 7.6 mm, Width: 22.05 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, Operating temperature range: -40-130 °C, Circuit application: signal, Degree of protection: IPX9K, UL flammability rating: UL 94-HB, Packaging method: box, Packaging quantity: 1000, Serviceable: no, Connector position assurance capable: no

Technical specifications
Connection Crimpanschluss
Number of rows 1
Version gerade
Additional parts unbestückt
Colour grau
Contact type Buchse
Rated voltage 14 V
Pin number 2-polig
Grid 1.8 mm
Type of locking Ja
Logistics
Country of origin JP
Customs tariff number 85389011
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
