2141404-9 | TE Connectivity

Socket, unequipped, 20 pole, straight, 2 rows, blue, 2141404-9

Order No.: 35P9933
EAN: 4099889891140
MPN:
2141404-9

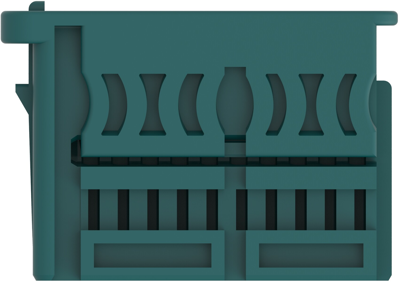

2141404-9 TE Connectivity Automotive Power Connectors Image 1

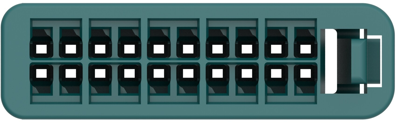

2141404-9 TE Connectivity Automotive Power Connectors Image 2

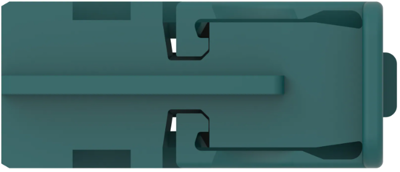

2141404-9 TE Connectivity Automotive Power Connectors Image 3

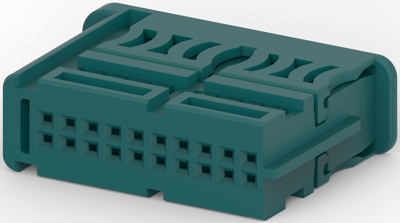

2141404-9 TE Connectivity Automotive Power Connectors Image 4

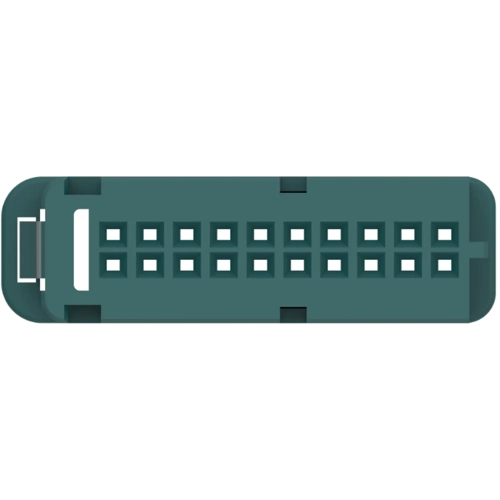

2141404-9 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.9397 € *
Available in 5 Days: 12,000 pcs. - if ordered today
Total Price:
1.94 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9397 €
10 pcs.
1.7612 €
50 pcs.
1.5946 €
100 pcs.
1.4280 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket housing, 2141404-9, TE Connectivity

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 20, Number of rows: 2, Operating voltage: 12 VAC, Nominal voltage architecture: 12 V, Body material: PBT GF, Primary product color: blue, Connector code: Z, Mating tab width: 0.5 mm, Mating alignment type: polarized, Centerline (pitch): 1.8 mm, Row-to-row spacing: 5.9 mm, Operating temperature (max): 130 °C, Operating temperature range: -40-130 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: box & carton, Serviceable: no, Connector position assurance capable: no

Technical specifications
Colour blue
Type of locking Yes
Grid 1.8 mm
Pin number 20 pole
Version straight
Additional parts unequipped
Contact type socket
Rated voltage 12 V
Number of rows 2
Logistics
Country of origin CN
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
