2138558-1 | TE Connectivity

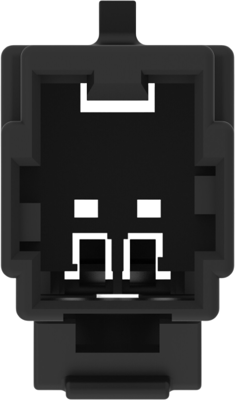

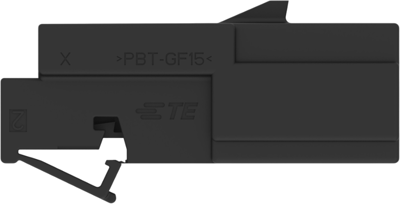

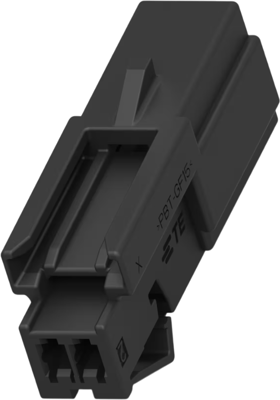

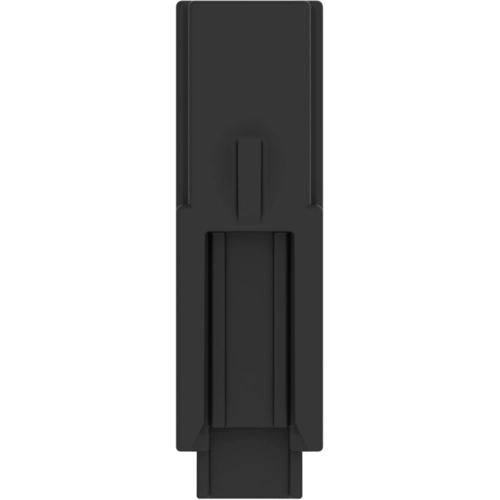

Plug, unequipped, 2 pole, straight, 1 row, black, 2138558-1
Order No.: 35P9408
EAN: 4099889889611
MPN:
2138558-1
Unit Price (€ / pc.)
1.7850 € *
Available: 0 pcs.
Available in 5 Days: 902 pcs.
Leadtime: 29 Weeks **
Total Price:
1.79 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7850 €
10 pcs.
1.6303 €
50 pcs.
1.4637 €
100 pcs.
1.3209 €
*incl. VAT plus shipping costs
**Subject to prior sale
Plug housing, 2138558-1, TE Connectivity
Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 2, Number of rows: 1, Body material: PBT GF, Primary product color: black, Mating tab width: 0.64 mm, Mating alignment type: polarized, Centerline (pitch): 2.54 mm, Product height: 12.97 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, Operating temperature range: -40-100 °C, Circuit application: signal, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Colour | black | |
| Type of locking | Yes | |
| Grid | 2.54 mm | |
| Pin number | 2 pole | |
| Version | straight | |
| Additional parts | unequipped | |
| Connection | crimp connection | |
| Contact type | plug | |
| Rated voltage | 24 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85472000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
