2098407-1 | TE Connectivity
Socket, unequipped, 8 pole, straight, 1 row, yellow, 2098407-1
Order No.: 35P9475
EAN: 4099889889888
MPN:
2098407-1
Unit Price (€ / pc.)
2.7965 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
2.80 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7965 €
10 pcs.
2.5942 €
25 pcs.
2.4157 €
50 pcs.
2.2015 €
*incl. VAT plus shipping costs
Subject to prior sale

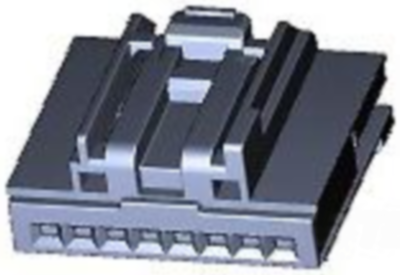

Socket housing, 2098407-1, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 8, Number of rows: 1, Body material: PA GF, Primary product color: yellow, Mating tab width: 0.64 mm, Mating alignment type: polarized, Centerline (pitch): 2.54 mm, Product height: 23.4 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, Operating temperature range: -40-100 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: package, Serviceable: yes, Connector position assurance capable: yes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | yellow | |
| Version | straight | |
| Pin number | 8 pole | |
| Grid | 2.54 mm | |
| Rated voltage | 24 V | |
| Additional parts | unequipped | |
| Contact type | socket | |
| Connection | crimp connection | |
| Type of locking | Yes | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
