2098377-1 | TE Connectivity
Socket, unequipped, 20 pole, straight, 2 rows, black, 2098377-1
Order No.: 35P8759
EAN: 4099889887822
MPN:
2098377-1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.9873 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
1.99 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9873 €
10 pcs.
1.8445 €
25 pcs.
1.7255 €
50 pcs.
1.5708 €
*incl. VAT plus shipping costs
Subject to prior sale

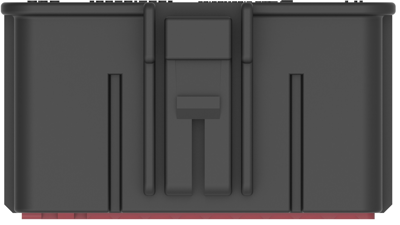

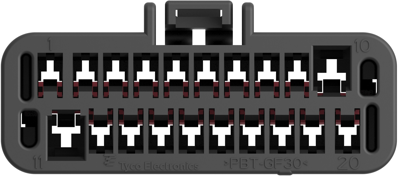

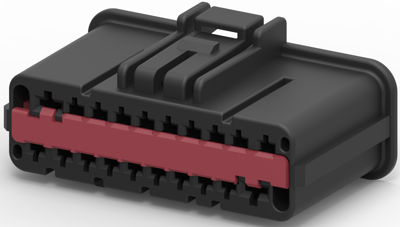

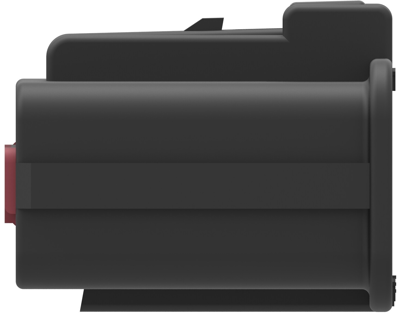

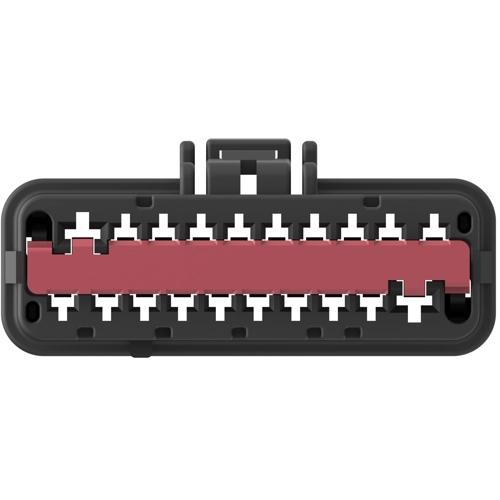

Socket housing, 2098377-1, TE Connectivity
Row-to-row spacing: 6.2 mm, Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: yes, Number of positions: 20, Number of rows: 2, Nominal voltage architecture: 12 V, Cable exit angle: 180°, Body material: PBT GF, Primary product color: black, Connector code: A, Mating tab width: 1.5-2.8 mm, Mounting feature: without, Polarized, Centerline (pitch): 3.52 mm, Operating temperature (max): 125 °C, Operating temperature range: -30-125 °C, Circuit application: power & signal, Agency/standard: SAE/USCAR-2, Packaging method: carton, Packaging quantity: 390, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | socket | |
| Pin number | 20 pole | |
| Version | straight | |
| Grid | 3.52 mm | |
| Connection | crimp connection | |
| Number of rows | 2 | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
