2050994-1 | TE Connectivity

Socket, unequipped, 3 pole, straight, 1 row, black, 2050994-1

Order No.: 36P2831
EAN: 4099889898729
MPN:
2050994-1

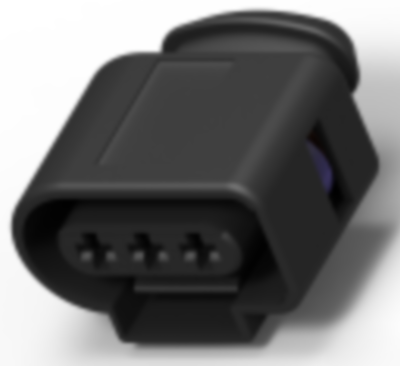

2050994-1 TE Connectivity Automotive Power Connectors Image 1

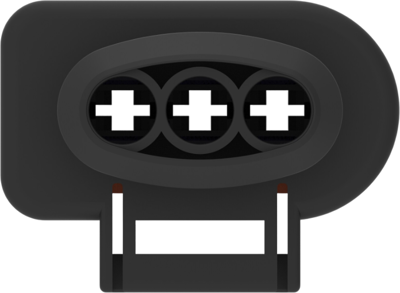

2050994-1 TE Connectivity Automotive Power Connectors Image 2

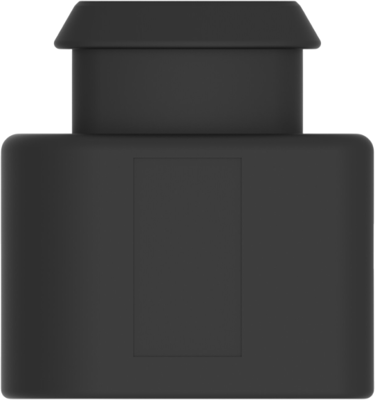

2050994-1 TE Connectivity Automotive Power Connectors Image 3
2050994-1 TE Connectivity Automotive Power Connectors Image 4
2050994-1 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.6898 € *
Standard delivery time from the manufacturer is: 19 Weeks
Total Price:
8.45 € *
Price list
Quantity
Price per unit*
5 pcs.
1.6898 €
10 pcs.
1.5589 €
25 pcs.
1.4518 €
50 pcs.
1.3209 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket housing, 2050994-1, TE Connectivity

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 3, Number of rows: 1, Body material: other, Primary product color: black, Connector code: I, Mating tab width: 2.8 mm, Mating alignment type: polarized, Centerline (pitch): 6 mm, Product length: 31 mm, Circuit application: signal, UL flammability rating: UL 94HB, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Filter Property Value
Grid 6 mm
Contact type socket
Version straight
Rated voltage 13 V
Type of locking Yes
Additional parts unequipped
Number of rows 1
Colour black
Pin number 3 pole
Connection crimp connection
Logistics
Property Value
Country of origin CN
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
