2-2141520-1 | TE Connectivity

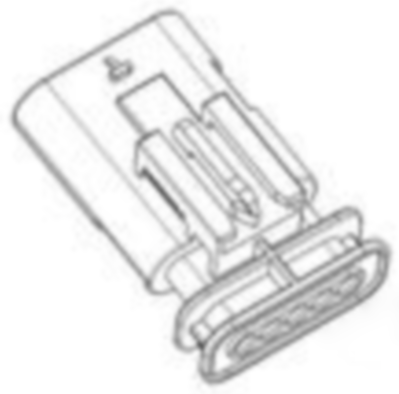

Plug, unequipped, 5 pole, straight, 1 row, gray, 2-2141520-1
Order No.: 35P9684
EAN: 4099889890853
MPN:
2-2141520-1
Unit Price (€ / pc.)
1.1900 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
5.95 € *
Price list
Quantity
Price per unit*
5 pcs.
1.1900 €
10 pcs.
1.1067 €
25 pcs.
1.0234 €
50 pcs.
0.9282 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug housing, 2-2141520-1, TE Connectivity
Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 5, Number of rows: 1, Operating voltage: 14 VDC, Nominal voltage architecture: 12 V, Body material: PBT GF, Primary product color: gray, Mating tab width: 1.2 mm, Strain relief: no, Centerline (pitch): 4-Product height: 16.3 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, Operating temperature range: -40-125 °C, -40-125 °C, Circuit application: signal, Packaging quantity: 750, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Number of rows | 1 | |
| Rated voltage | 14 V | |
| Pin number | 5 pole | |
| Contact type | plug | |
| Version | straight | |
| Grid | 4 mm | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85389011 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
