2-1719434-1 | TE Connectivity

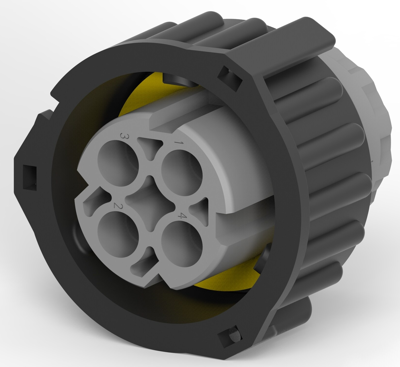

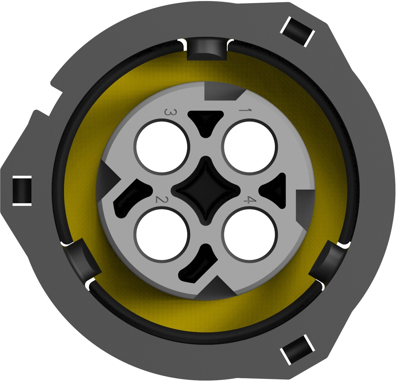

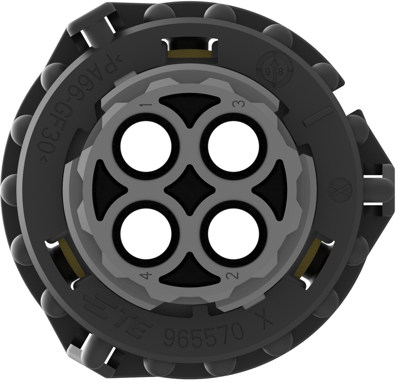

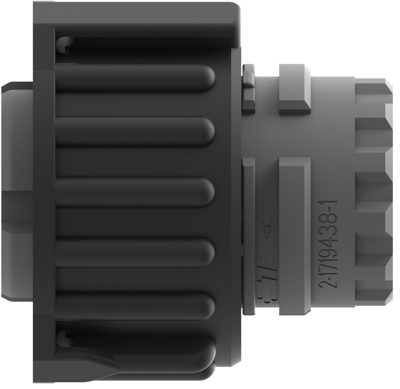

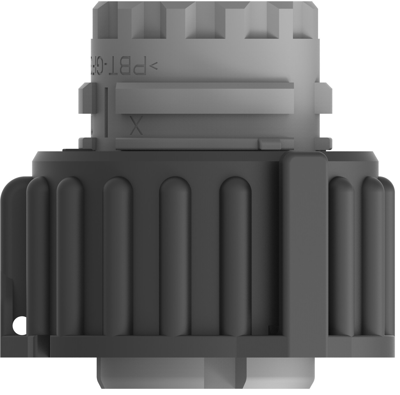

Socket, unequipped, 4 pole, straight, 2 rows, gray, 2-1719434-1
Order No.: 36P4010
EAN: 4099889904406
MPN:
2-1719434-1
Unit Price (€ / pc.)
2.8084 € *
Standard delivery time from the manufacturer is: 16 Weeks
Socket housing, 2-1719434-1, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 4, Operating voltage: 48 VDC, Nominal voltage architecture: 12 V, 24 V, 42 V, 48 V, Body material: PBT GF, Primary product color: gray, Mating pin diameter: 2.5 mm, Strain relief: no, Centerline (pitch): 7 mm, Product height: 32.8 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, UL flammability rating: UL 94HB, Packaging method: box & carton, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Colour | gray | |
| Type of locking | Yes | |
| Grid | 7 mm | |
| Pin number | 4 pole | |
| Version | straight | |
| Additional parts | unequipped | |
| Connection | crimp connection | |
| Contact type | socket | |
| Rated voltage | 48 V | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85389091 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
