2-1670917-1 | TE Connectivity

Socket, unequipped, 3 pole, straight, 1 row, black, 2-1670917-1

Order No.: 35P9661
EAN: 4099889890679
MPN:
2-1670917-1
Series: MCON

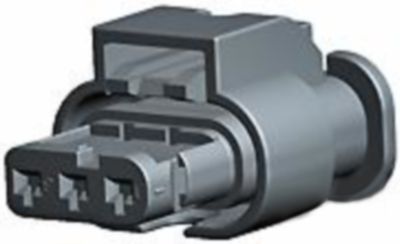

2-1670917-1 TE Connectivity Automotive Power Connectors Image 1

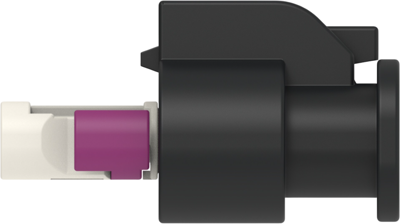

2-1670917-1 TE Connectivity Automotive Power Connectors Image 2

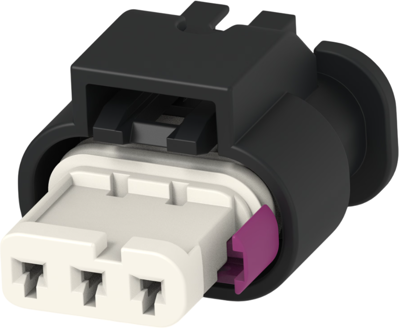

2-1670917-1 TE Connectivity Automotive Power Connectors Image 3

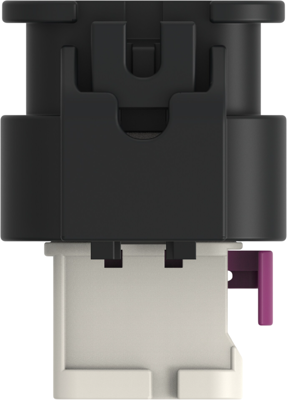

2-1670917-1 TE Connectivity Automotive Power Connectors Image 4

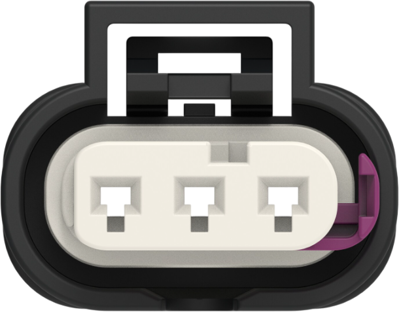

2-1670917-1 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.5113 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
1.51 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.5113 €

Socket housing, 2-1670917-1, TE Connectivity

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 3, Number of rows: 1, Operating voltage: 12 VDC, Nominal voltage architecture: 12 V, Body material: PA GF, Primary product color: black, Mating tab width: 1.2 mm, Mating alignment type: polarized, Centerline (pitch): 4-Product height: 14.8 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, Operating temperature range: -40-130 °C, Circuit application: signal, Degree of protection: IP6K9K, Packaging method: box, Serviceable: yes, Connector position assurance capable: yes

Technical specifications
Version straight
Colour black
Type of locking Yes
Rated voltage 12 V
Pin number 3 pole
Grid 4 mm
Number of rows 1
Contact type socket
Additional parts unequipped
Logistics
Customs tariff number 85472000
Country of origin KR
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
