2-1534127-1 | TE Connectivity

Socket, unequipped, 21 pole, angled, 3 rows, natural, 2-1534127-1

Order No.: 36P4205
EAN: 4099889905663
MPN:
2-1534127-1
Series: LEAVYSEAL

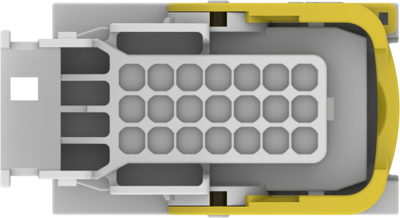

2-1534127-1 TE Connectivity Automotive Power Connectors Image 1

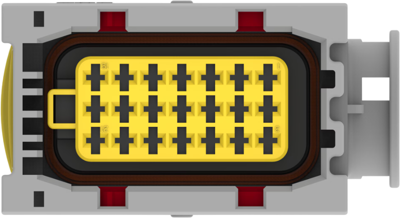

2-1534127-1 TE Connectivity Automotive Power Connectors Image 2

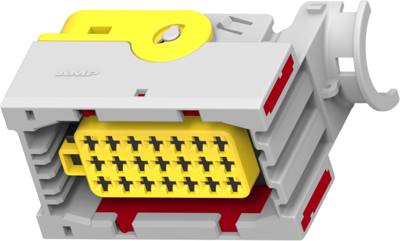

2-1534127-1 TE Connectivity Automotive Power Connectors Image 3

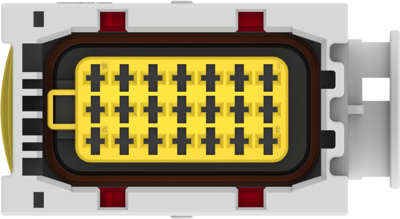

2-1534127-1 TE Connectivity Automotive Power Connectors Image 4

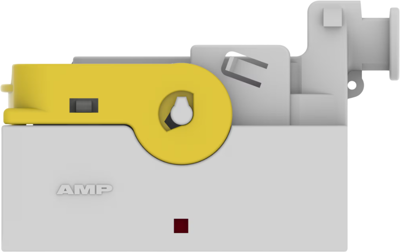

2-1534127-1 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
13.5422 € *
Available in 5 Days: 74 pcs. - if ordered today
Total Price:
13.54 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
13.5422 €

Socket housing, 2-1534127-1, TE Connectivity

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 21, Number of rows: 3, Operating voltage: 28 VDC, Nominal voltage architecture: 12 V, 24 V, Body material: PBT GF, Primary product color: natural, Mating tab width: 2.8 mm, Strain relief: yes, Centerline (pitch): 5 mm, Row-to-row spacing: 2.4 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: box, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Filter Property Value
Version angled
Colour natural
Type of locking Yes
Rated voltage 28 V
Pin number 21 pole
Connection crimp connection
Grid 5 mm
Number of rows 3
Rated current 40 A
Contact type socket
Additional parts unequipped
Logistics
Property Value
Customs tariff number 85389011
Country of origin US
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
