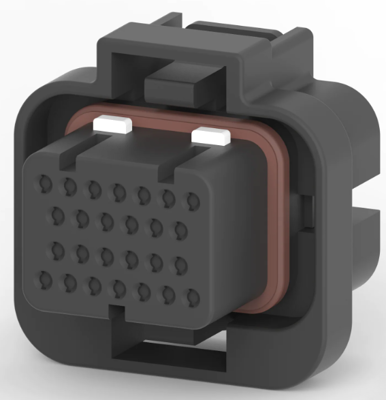

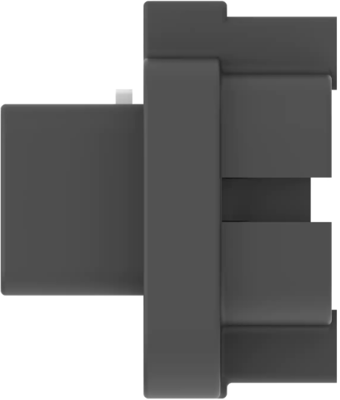

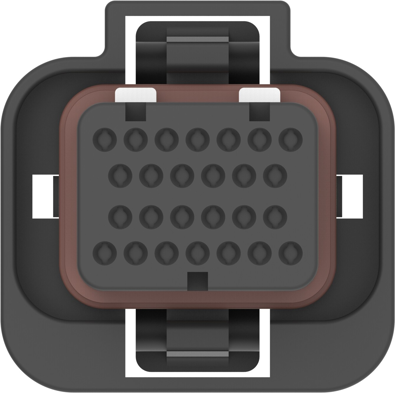

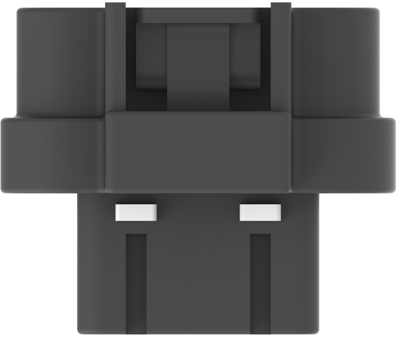

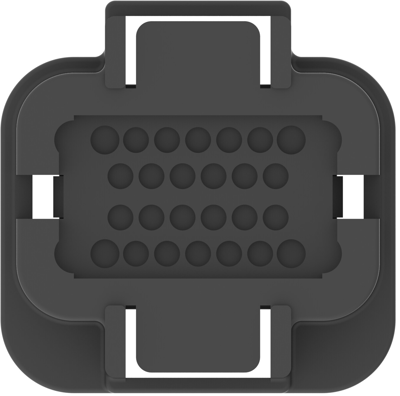

Socket housing, 2-1437285-2, TE Connectivity
Row-to-row spacing: 2.54 mm, Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: yes, Hybrid connector: no, Number of positions: 26, Number of rows: 4, Nominal voltage architecture: 12 V, 24 V, 42 V, 48 V, 80 V, 90 V, 125 V, 240 V, Operating voltage: 250 VAC, Operating voltage: 250 VDC, Cable exit angle: 180°, Body material: PBT GF, Primary product color: black, Mating pin diameter: 1 mm, Mounting feature: without, Polarized, Centerline (pitch): 3 mm, Height: 38 mm, Length: 32.15 mm, Width: 32.2 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, Operating temperature range: -40-125 °C, -40-125 °C, Degree of protection: JIS D0203, UL flammability rating: UL 94V-2, Packaging method: box, Packaging quantity: 500, Serviceable: yes, Connector position assurance capable: no
