1924678-1 | TE Connectivity

Plug, 26 pole, straight, 2 rows, black, 1924678-1

Order No.: 36P3675
EAN: 4099889902235
MPN:
1924678-1

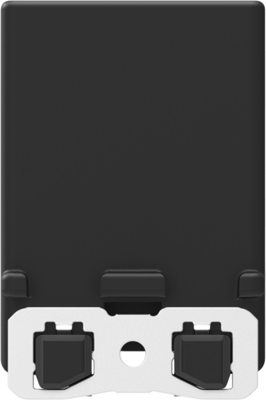

1924678-1 TE Connectivity Automotive Power Connectors Image 1

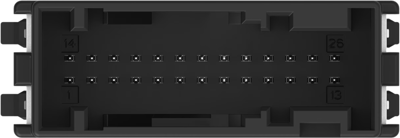

1924678-1 TE Connectivity Automotive Power Connectors Image 2

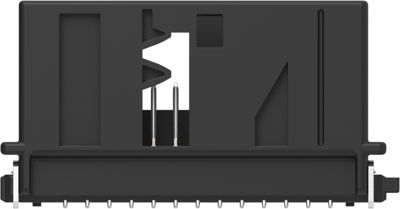

1924678-1 TE Connectivity Automotive Power Connectors Image 3

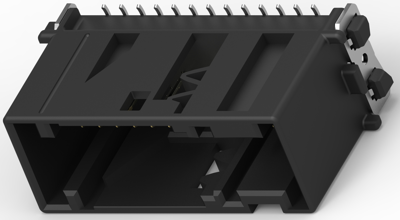

1924678-1 TE Connectivity Automotive Power Connectors Image 4
Image may differ
Unit Price (€ / pc.)
12.5664 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
12.57 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
12.5664 €

PCB mount header, 1924678-1, TE Connectivity

Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 26, Number of positions: 26, PCB mount orientation: vertical, Number of rows: 2, Primary product color: black, Mating tab width: 0.64 mm, Mating tab thickness: 0.64 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: Surface Mount, PCB mount retention type: solder tail, Centerline (pitch): 2.54 mm, Product length: 44.4 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, Operating temperature range: -40-100 °C, Shielded: no, Circuit application: signal, Packaging type: tube

Technical specifications
Filter Property Value
Pin number 26 pole
Connection solder connection
Colour black
Type of locking No
Grid 2.54 mm
Number of rows 2
contact surface tin-plated
Version straight
Contact type plug
Logistics
Property Value
Customs tariff number 85366910
Country of origin US
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
