1924396-1 | TE Connectivity

Socket, unequipped, 14 pole, straight, 2 rows, black, 1924396-1

Order No.: 35P9713
EAN: 4099889891034
MPN:
1924396-1

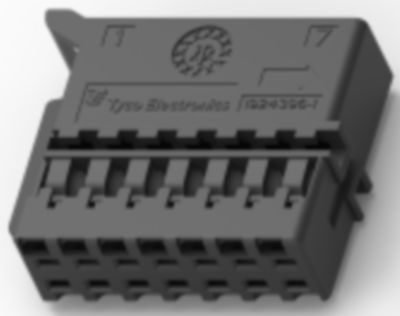

1924396-1 TE Connectivity Automotive Power Connectors Image 1

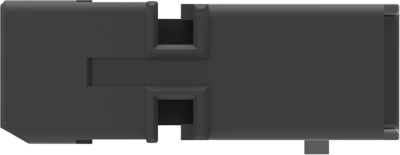

1924396-1 TE Connectivity Automotive Power Connectors Image 2

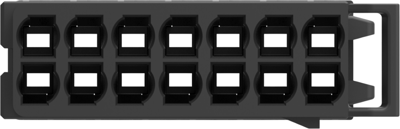

1924396-1 TE Connectivity Automotive Power Connectors Image 3

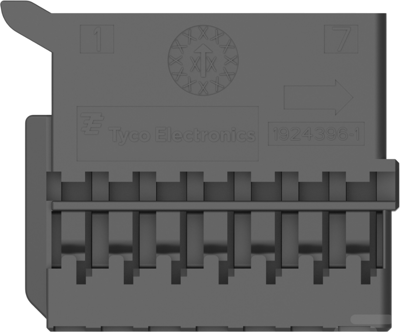

1924396-1 TE Connectivity Automotive Power Connectors Image 4
Image may differ
Unit Price (€ / pc.)
1.5470 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
1,856.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
1200 pcs.
1.5470 €

Socket housing, 1924396-1, TE Connectivity

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 14, Number of rows: 2, Body material: PA GF, Primary product color: black, Mating tab width: 1.2 mm, Mating alignment type: polarized, Centerline (pitch): 3 mm, Row-to-row spacing: 2.54 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -40-105 °C, Circuit application: signal, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Version straight
Colour black
Type of locking Yes
Pin number 14 pole
Connection crimp connection
Grid 3 mm
Number of rows 2
Contact type socket
Additional parts unequipped
Logistics
Customs tariff number 85472000
Country of origin US
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
