1924341-1 | TE Connectivity

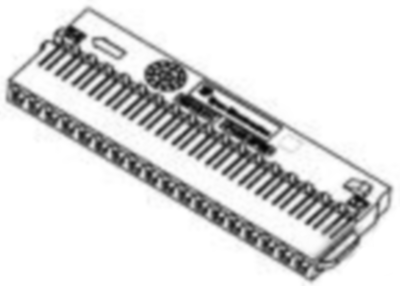

Socket, unequipped, 18 pole, straight, 1 row, black, 1924341-1
Order No.: 35P9404
EAN: 4099889889574
MPN:
1924341-1
Unit Price (€ / pc.)
2.4990 € *
Available in 5 Days: 1,898 pcs. - if ordered today
Total Price:
2.50 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4990 €
10 pcs.
2.3205 €
25 pcs.
2.1658 €
50 pcs.
1.9635 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket housing, 1924341-1, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 18, Number of rows: 1, Cable exit angle: 180°, Body material: PA GF, Primary product color: black, Mating tab width: 0.64 mm, Mounting feature: without, Polarized, Centerline (pitch): 2.54 mm, Height: 6 mm, Length: 48.3 mm, Width: 16.5 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, Operating temperature range: -40-100 °C, Circuit application: signal, Packaging method: package, Packaging quantity: 50, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | unequipped | |
| Rated voltage | 24 V | |
| Pin number | 18 pole | |
| Contact type | socket | |
| Number of rows | 1 | |
| Colour | black | |
| Grid | 2.54 mm | |
| Version | straight | |
| Type of locking | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
