1903994-1 | TE Connectivity
Socket, 6 pole, 1 row, natural, 1903994-1
Unit Price (€ / pc.)
0.4403 € *
Available in 5 Days: 1,280 pcs. - if ordered today

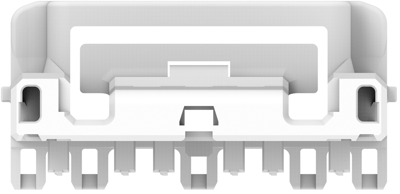

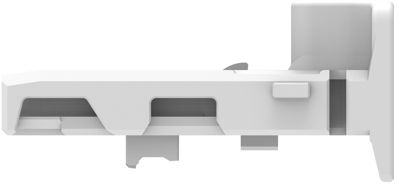

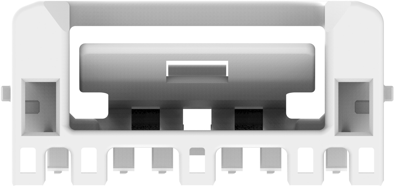

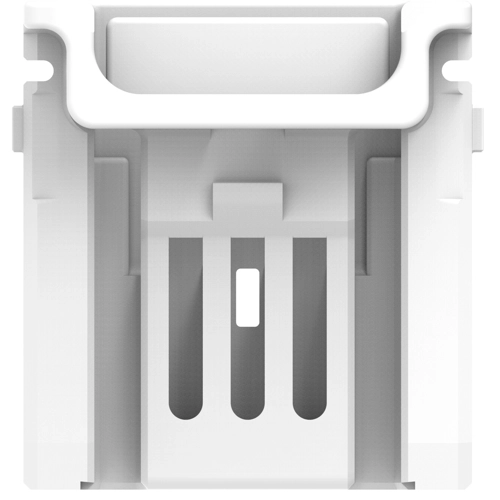

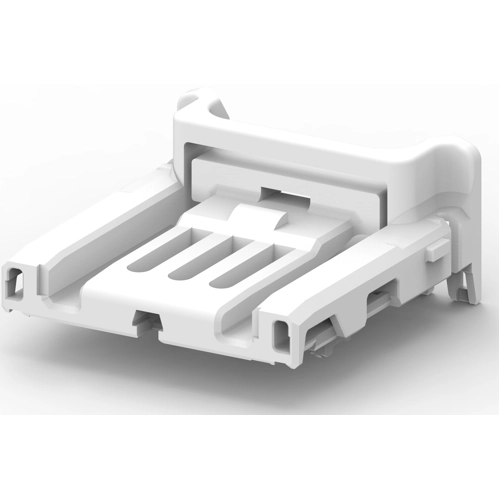

Miniature connector, 1903994-1, TE Connectivity
The 1903994-1 is a miniature connector for thin-type computer units, high-density circuit boards and ultra-narrow wiring. This product provides a stable Surface mount with a center-weighted design also small but easy to lock.
Features
- Minimum pitch of 0.75 mm for surface mounting PCB
- Lead-free solder compliant
Applications
- Drive support system
- Luggage door closer system
- Air-Conditioning ECU
- Navigation ECU
- ECUs for compact and high density requirements
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 6 pole | |
| Number of rows | 1 | |
| Type of locking | Yes | |
| Contact type | socket | |
| Colour | natural |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
