1903614-1 | TE Connectivity
Socket, unequipped, 6 pole, straight, 3 rows, natural, 1903614-1
Order No.: 35P8570
EAN: 4099889886344
MPN:
1903614-1
Unit Price (€ / pc.)
0.8449 € *
Standard delivery time from the manufacturer is: 24 Weeks

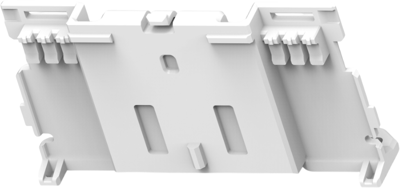

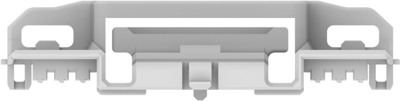

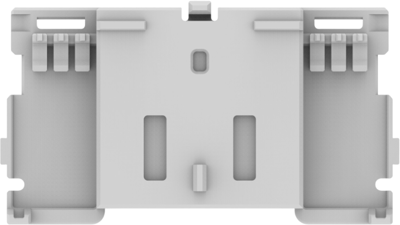

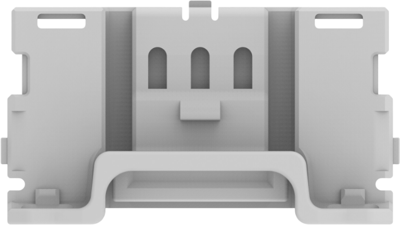

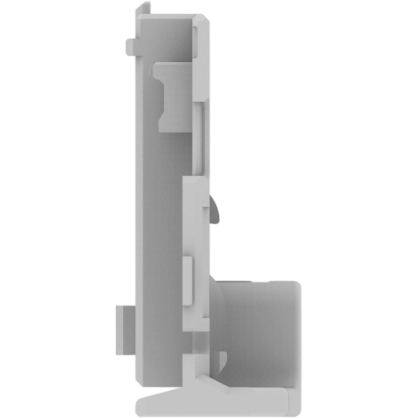

Socket housing, 1903614-1, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 6, Operating voltage: 12 VDC, Nominal voltage architecture: 12 V, Body material: PBT, Primary product color: natural, Mating tab width: 0.5 mm, Mating alignment type: polarized, Centerline (pitch): 1.6 mm, Product height: 7.5 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, Operating temperature range: -30-85 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: box & Tray, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 12 V | |
| Version | straight | |
| Number of rows | 3 | |
| Additional parts | unequipped | |
| Pin number | 6 pole | |
| Grid | 1.6 mm | |
| Type of locking | Yes | |
| Contact type | socket | |
| Colour | natural |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
