1897122-3 | TE Connectivity
Socket, unequipped, 8 pole, straight, 2 rows, gray, 1897122-3
Order No.: 36P3016
EAN: 4099889900194
MPN:
1897122-3
Unit Price (€ / pc.)
0.9996 € *
Available: 0 pcs.
Leadtime: On Request **

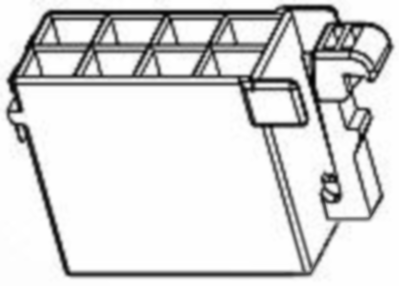

Socket housing, 1897122-3, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-board, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 8, Number of rows: 2, Body material: PA, Primary product color: gray, Mating tab width: 2.8 mm, Mating alignment type: polarized, Centerline (pitch): 6 mm, Row-to-row spacing: 5 mm, Circuit application: signal, Packaging method: tray, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Connection | crimp connection | |
| Number of rows | 2 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | gray | |
| Contact type | socket | |
| Rated voltage | 28 V | |
| Pin number | 8 pole | |
| Grid | 6 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85389011 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
