1823347-1 | TE Connectivity

Socket, unequipped, 8 pole, straight, 2 rows, black, 1823347-1

Order No.: 35P9486
EAN: 4099889889970
MPN:
1823347-1

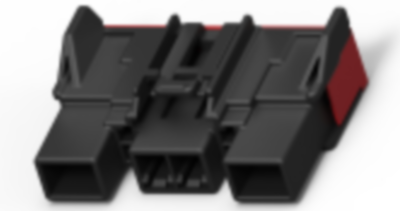

1823347-1 TE Connectivity Automotive Power Connectors Image 1

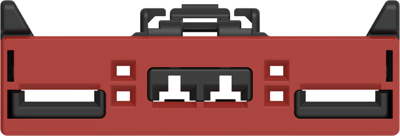

1823347-1 TE Connectivity Automotive Power Connectors Image 2

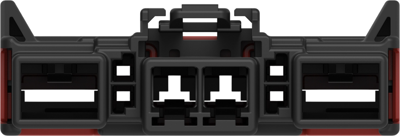

1823347-1 TE Connectivity Automotive Power Connectors Image 3

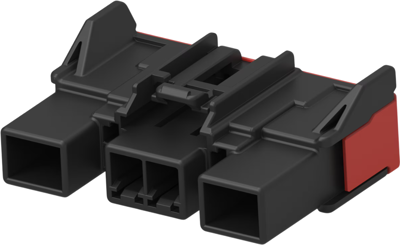

1823347-1 TE Connectivity Automotive Power Connectors Image 4

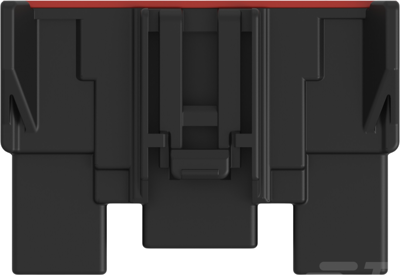

1823347-1 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
2.3919 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
688.87 € *
*incl. VAT plus shipping costs
Subject to prior sale
288 pcs.
2.3919 €

Socket housing, 1823347-1, TE Connectivity

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: yes, Primary locking feature: integrated in housing, Number of positions: 8, Number of rows: 2, Operating voltage: 14 VDC, Nominal voltage architecture: 12 V, Body material: PA GF, Primary product color: black, Mating tab width: 0.64 mm, 2.8 mm, 6.3 mm, Strain relief: no, Centerline (pitch): 5.08 mm, 6.35 mm, Row-to-row spacing: 2.54 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, Operating temperature range: -40-100 °C, Circuit application: power & signal, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Version straight
Colour black
Type of locking Yes
Rated voltage 14 V
Pin number 8 pole
Grid 5.08 mm
Number of rows 2
Contact type socket
Additional parts unequipped
Logistics
Customs tariff number 85389011
Country of origin TH
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
