1813271-1 | TE Connectivity

Socket, unequipped, 3 pole, straight, 1 row, black, 1813271-1

Order No.: 36P2879
EAN: 4099889899092
MPN:
1813271-1

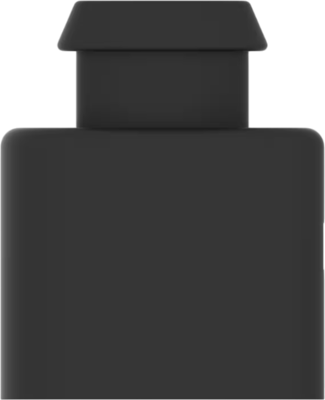

1813271-1 TE Connectivity Automotive Power Connectors Image 1

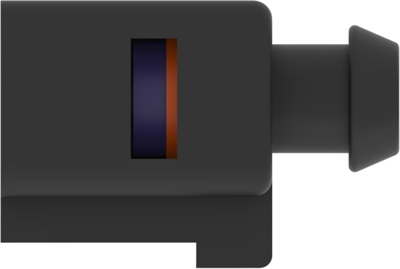

1813271-1 TE Connectivity Automotive Power Connectors Image 2

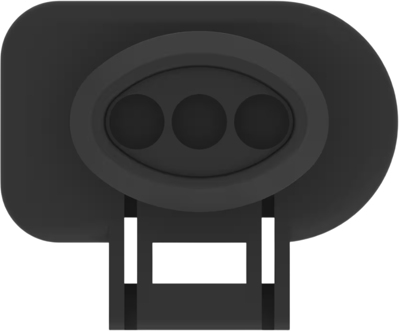

1813271-1 TE Connectivity Automotive Power Connectors Image 3

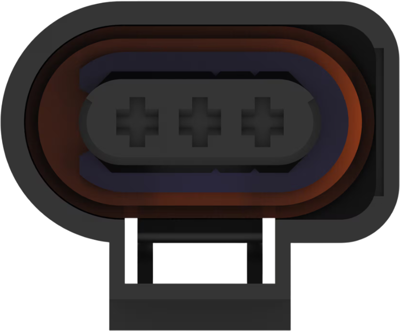

1813271-1 TE Connectivity Automotive Power Connectors Image 4

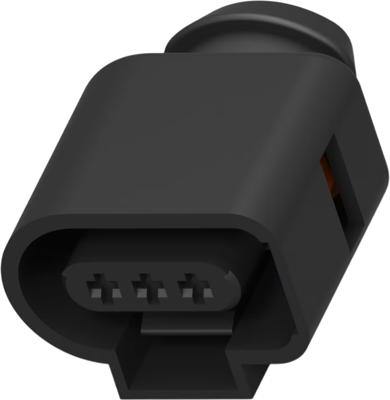

1813271-1 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.9754 € *
Available in 5 Days: 6,301 pcs. - if ordered today
Total Price:
9.88 € *
Price list
Quantity
Price per unit*
5 pcs.
1.9754 €
10 pcs.
1.8326 €
25 pcs.
1.7017 €
50 pcs.
1.5470 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket housing, 1813271-1, TE Connectivity

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 3, Number of rows: 1, Cable exit angle: 180°, Body material: PBT, Primary product color: black, Mating tab width: 1.6 mm, Mounting feature: without, Polarized, Centerline (pitch): 4-Height: 31.4 mm, Width: 21.1 mm, Circuit application: signal, Degree of protection: IP6K9K, UL flammability rating: UL 94-HB, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Filter Property Value
Grid 4 mm
Contact type socket
Version straight
Rated voltage 250 V
Type of locking Yes
Additional parts unequipped
Number of rows 1
Colour black
Pin number 3 pole
Connection crimp connection
Logistics
Property Value
Country of origin TH
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
