1813139-1 | TE Connectivity
Socket, unequipped, 6 pole, straight, 2 rows, black, 1813139-1
Order No.: 36P2878
EAN: 4099889899085
MPN:
1813139-1
Unit Price (€ / pc.)
1.9397 € *
Standard delivery time from the manufacturer is: 17 Weeks

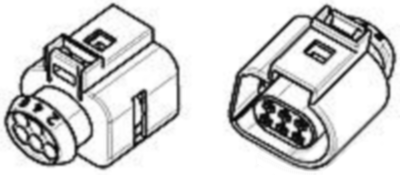

Socket housing, 1813139-1, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 6, Number of rows: 2, Body material: PBT, Primary product color: black, Mating tab width: 1.6 mm, Mating alignment type: polarized, Centerline (pitch): 4-Row-to-row spacing: 2.54 mm, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: bag, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Colour | black | |
| Type of locking | Yes | |
| Grid | 4 mm | |
| Pin number | 6 pole | |
| Version | straight | |
| Additional parts | unequipped | |
| Connection | crimp connection | |
| Contact type | socket | |
| Rated voltage | 12 V | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85472000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
