1801655-1 | TE Connectivity
Socket, unequipped, 2 pole, straight, 1 row, black, 1801655-1
Order No.: 36P1854
EAN: 4099889896954
MPN:
1801655-1
Unit Price (€ / pc.)
5.3193 € *
Available in 5 Days: 300 pcs. - if ordered today

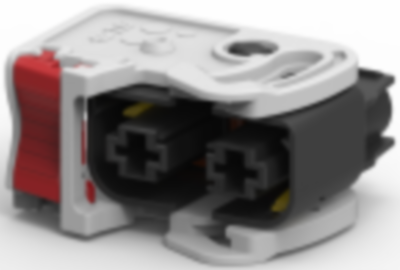

Socket housing, 1801655-1, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-device, Sealable: yes, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 2, Number of rows: 1, Nominal voltage architecture: 12 V, Body material: PBT, Primary product color: black, Mating tab width: 8 mm, Mating alignment type: polarized, Centerline (pitch): 19.4 mm, Product height: 31.2 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, Operating temperature range: -40-100 °C, Circuit application: power, UL flammability rating: UL 94V-0, Packaging method: box, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 19.4 mm | |
| Contact type | socket | |
| Additional parts | unequipped | |
| Colour | black | |
| Number of rows | 1 | |
| Pin number | 2 pole | |
| Version | straight | |
| Type of locking | Yes | |
| Rated voltage | 16 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
