1801263-1 | TE Connectivity

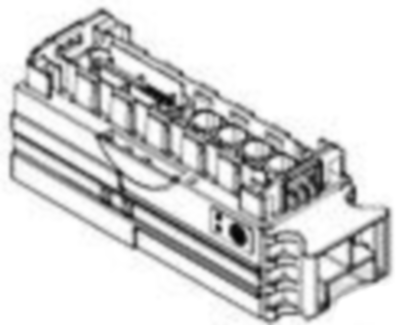

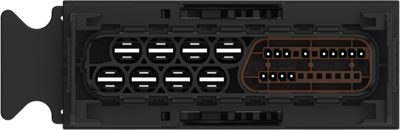

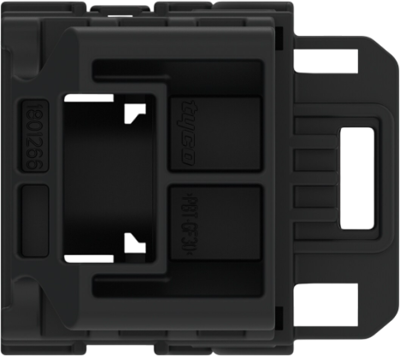

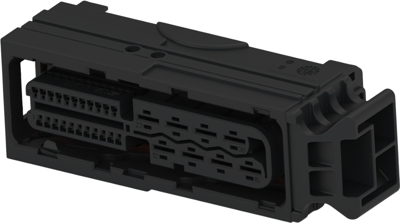

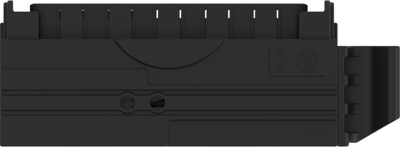

Socket, unequipped, 30 pole, straight, 4 rows, black, 1801263-1
Order No.: 35P9990
EAN: 4099889891645
MPN:
1801263-1
Unit Price (€ / pc.)
8.4728 € *
Standard delivery time from the manufacturer is: 34 Weeks
Socket housing, 1801263-1, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: yes, Number of positions: 30, Number of rows: 4, Operating voltage: 16 VDC, Nominal voltage architecture: 12 V, Body material: PBT GF, Primary product color: black, Connector code: A, Mating tab width: 0.63 mm, Mating alignment type: polarized, Centerline (pitch): 2.54 mm, Row-to-row spacing: 2.54 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, Operating temperature range: -40-85 °C, UL flammability rating: UL 94HB, Packaging method: box, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.5 mm | |
| Contact type | socket | |
| Connection | crimp connection | |
| Rated voltage | 16 V | |
| Number of rows | 4 | |
| Type of locking | Yes | |
| Pin number | 30 pole | |
| Additional parts | unequipped | |
| Colour | black | |
| Version | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85389011 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
