1719183-1 | TE Connectivity

Socket, unequipped, 8 pole, straight, 1 row, black, 1719183-1

Order No.: 36P1038
EAN: 4099889892697
MPN:
1719183-1
Series: MQS

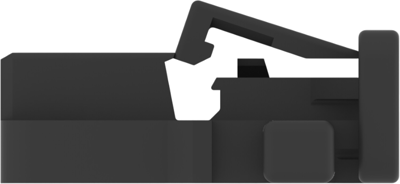

1719183-1 TE Connectivity Automotive Power Connectors Image 1

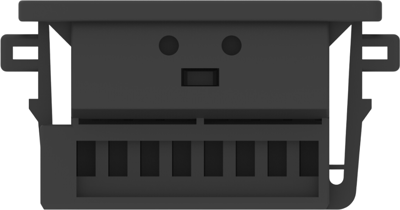

1719183-1 TE Connectivity Automotive Power Connectors Image 2

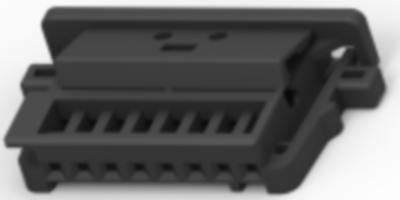

1719183-1 TE Connectivity Automotive Power Connectors Image 3

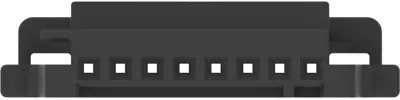

1719183-1 TE Connectivity Automotive Power Connectors Image 4

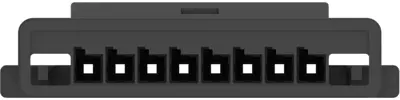

1719183-1 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.3209 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
1.32 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.3209 €

Socket housing, 1719183-1, TE Connectivity

Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 8, Number of rows: 1, Body material: PBT GF, Primary product color: black, Connector code: A, Mating tab width: 0.63 mm, Mating alignment type: polarized, Centerline (pitch): 2.54 mm, Product height: 16.7 mm, Circuit application: signal, Connector position assurance capable: no

Technical specifications
Version straight
Colour black
Type of locking Yes
Pin number 8 pole
Connection crimp connection
Grid 2.54 mm
Number of rows 1
Contact type socket
Additional parts unequipped
Logistics
Customs tariff number 85389091
Country of origin TH
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
