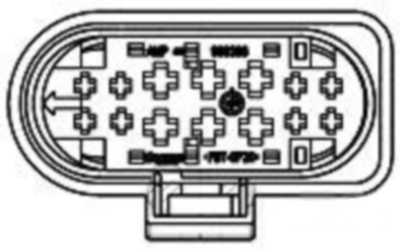

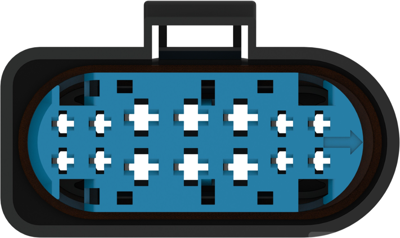

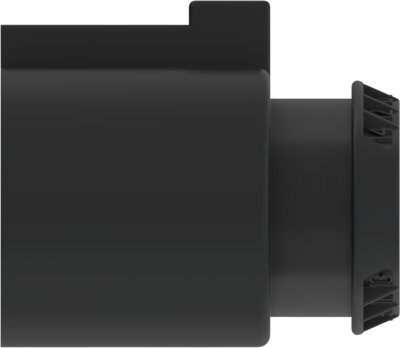

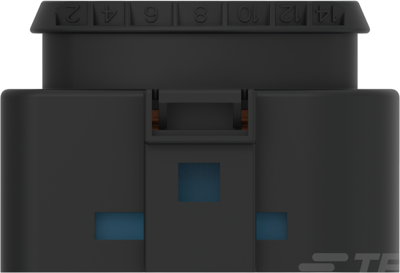

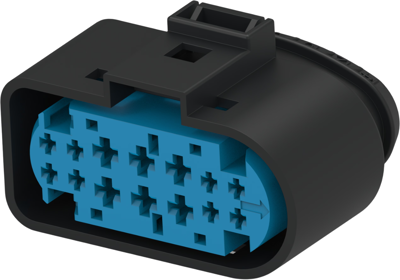

Socket housing, 1719105-2, TE Connectivity
Row-to-row spacing: 3.5 mm, Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, wire-to-wire, Sealable: yes, Hybrid connector: yes, Number of positions: 14, Number of rows: 2, Nominal voltage architecture: 12 V, Operating voltage: 12 VDC, Cable exit angle: other, Body material: PBT GF, Primary product color: blue, Mating tab width: 1.6 mm, 2.8 mm, Mounting feature: without, Polarized, Centerline (pitch): 4.5 mm, 6 mm, Height: 23.1 mm, Length: 48.3 mm, Width: 33 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, Operating temperature range: -40-130 °C, Circuit application: signal, Packaging method: box, Packaging quantity: 200, Serviceable: yes, Connector position assurance capable: no
