1719105-1 | TE Connectivity

Socket, unequipped, 14 pole, straight, 2 rows, 1719105-1

Order No.: 36P2775
EAN: 4099889898330
MPN:
1719105-1

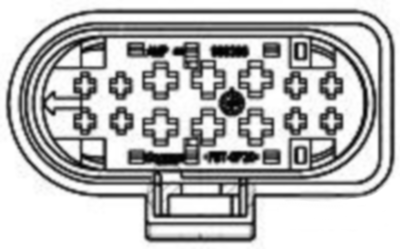

1719105-1 TE Connectivity Automotive Power Connectors Image 1

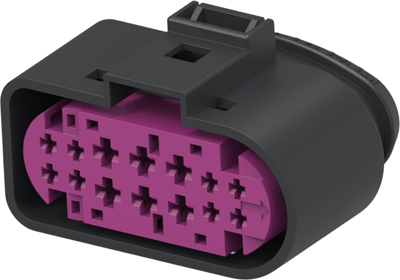

1719105-1 TE Connectivity Automotive Power Connectors Image 2

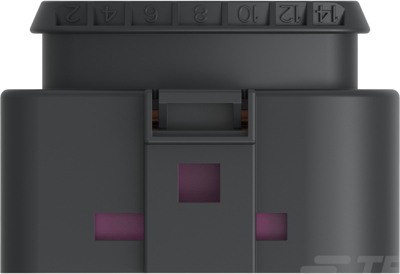

1719105-1 TE Connectivity Automotive Power Connectors Image 3

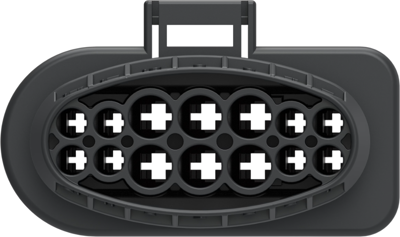

1719105-1 TE Connectivity Automotive Power Connectors Image 4

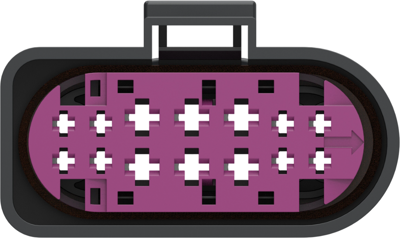

1719105-1 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
3.1773 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
3.18 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.1773 €

Socket housing, 1719105-1, TE Connectivity

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, wire-to-wire, Sealable: yes, Hybrid connector: yes, Primary locking feature: on the terminal, Number of positions: 14, Number of rows: 2, Operating voltage: 12 VDC, Nominal voltage architecture: 12 V, Body material: PBT GF, Primary product color: other, Mating tab width: 1.6 mm, 2.8 mm, Mating alignment type: polarized, Row-to-row spacing: 3.5 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, Operating temperature range: -40-130 °C, Circuit application: signal, Packaging method: box, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Version straight
Type of locking Yes
Rated voltage 12 V
Pin number 14 pole
Connection crimp connection
Number of rows 2
Contact type socket
Additional parts unequipped
Logistics
Customs tariff number 85389011
Country of origin TH
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
