1718831-1 | TE Connectivity
Socket, unequipped, 2 pole, straight, 1 row, black, 1718831-1
Order No.: 36P3078
EAN: 4099889900750
MPN:
1718831-1
Unit Price (€ / pc.)
0.8211 € *
Standard delivery time from the manufacturer is: 29 Weeks

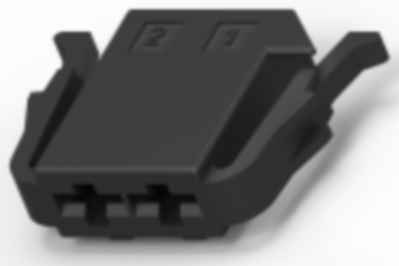

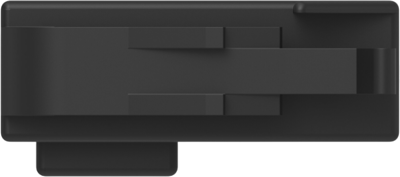

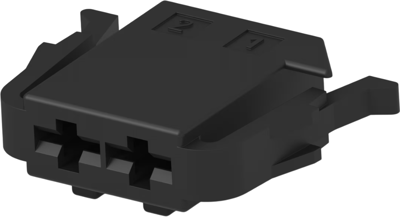

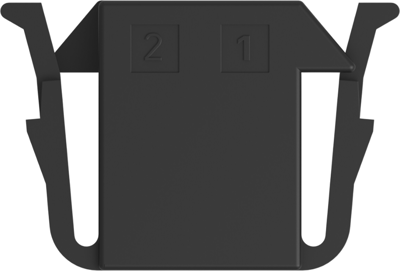

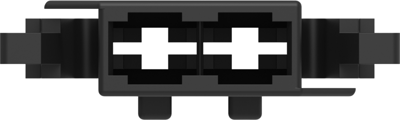

Socket housing, 1718831-1, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-board, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 2, Number of rows: 1, Body material: PA, Primary product color: black, Mating tab width: 4.8 mm, Mating alignment type: polarized, Centerline (pitch): 7.5 mm, Product height: 8 mm, Circuit application: signal, Packaging method: bag, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Version | straight | |
| Colour | black | |
| Type of locking | Yes | |
| Rated voltage | 14 V | |
| Pin number | 2 pole | |
| Connection | crimp connection | |
| Grid | 7.5 mm | |
| Number of rows | 1 | |
| Contact type | socket | |
| Additional parts | unequipped |
Download
Logistics
| Customs tariff number | 85389011 |
| Country of origin | TH |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
