1703780-1 | TE Connectivity

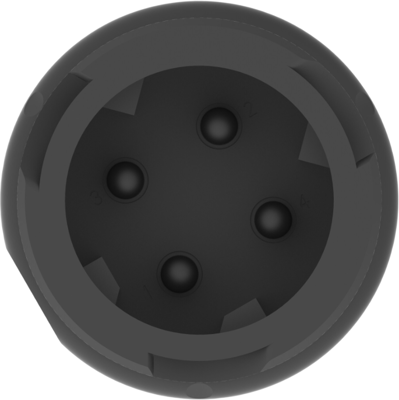

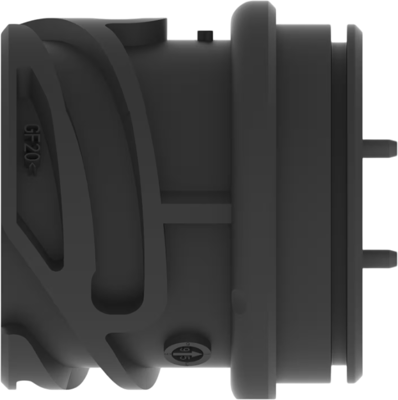

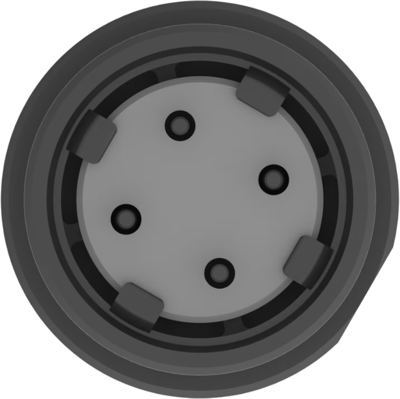

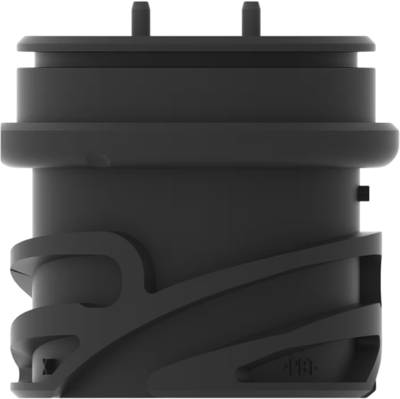

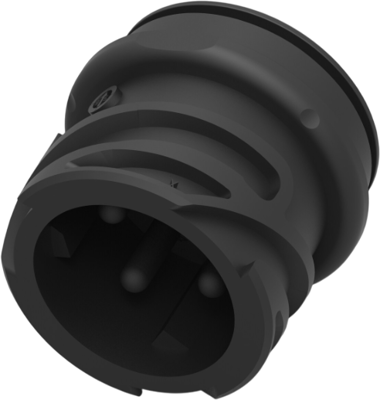

Plug, unequipped, 4 pole, straight, 2 rows, black, 1703780-1
Order No.: 36P4017
EAN: 4099889904444
MPN:
1703780-1
Unit Price (€ / pc.)
3.9984 € *
Standard delivery time from the manufacturer is: 19 Weeks
Plug housing, 1703780-1, TE Connectivity
Connector & housing type: housing for male terminals, Connector system: wire-to-board, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 4, Number of rows: 2, Body material: PBT GF, Primary product color: black, Mating pin diameter: 2.5 mm, Mating alignment type: polarized, Centerline (pitch): 7 mm, Row-to-row spacing: 7 mm, Circuit application: signal, Packaging method: box, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | plug | |
| Pin number | 4 pole | |
| Version | straight | |
| Grid | 7 mm | |
| Connection | crimp connection | |
| Number of rows | 2 | |
| contact surface | tin-plated | |
| Type of locking | Yes | |
| Rated voltage | 30 V | |
| Rated current | 40 A | |
| Additional parts | unequipped | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
