1674925-1 | TE Connectivity

Socket, unequipped, 34 pole, straight, 4 rows, natural, 1674925-1

Order No.: 35P8604
EAN: 4099889886573
MPN:
1674925-1

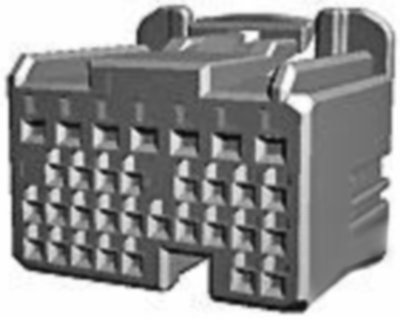

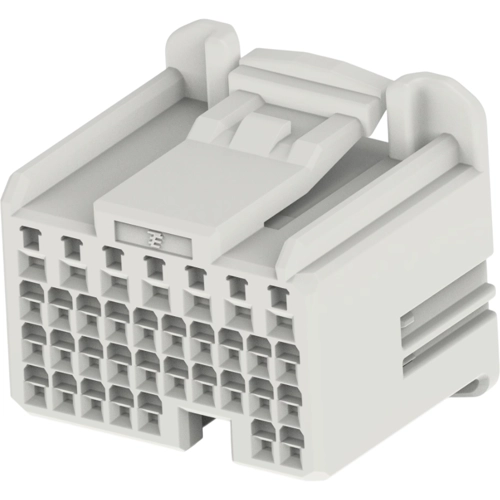

1674925-1 TE Connectivity Automotive Power Connectors Image 1

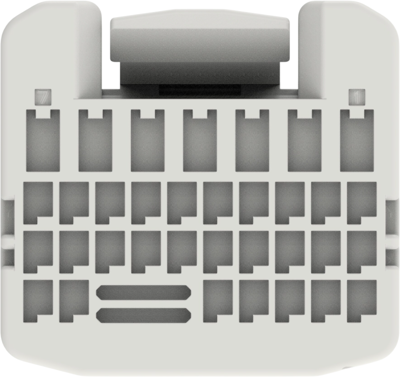

1674925-1 TE Connectivity Automotive Power Connectors Image 2

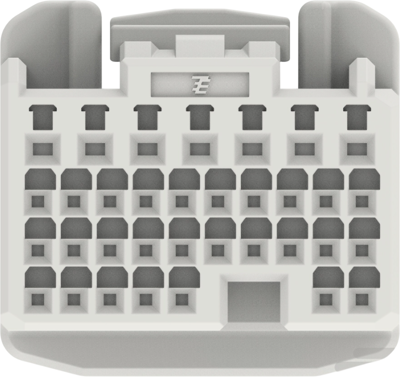

1674925-1 TE Connectivity Automotive Power Connectors Image 3

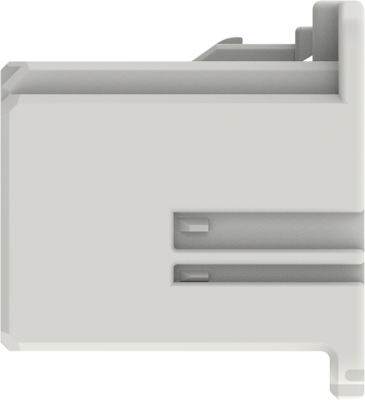

1674925-1 TE Connectivity Automotive Power Connectors Image 4
Image may differ
Unit Price (€ / pc.)
1.4994 € *
Available in 5 Days: 3,200 pcs. - if ordered today
Total Price:
1.50 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4994 €
10 pcs.
1.3685 €
50 pcs.
1.2257 €
100 pcs.
1.1067 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket housing, 1674925-1, TE Connectivity

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: yes, Primary locking feature: integrated in housing, Number of positions: 34, Number of rows: 3, 4, Operating voltage: 12 VDC, Nominal voltage architecture: 12 V, Body material: PBT, Primary product color: natural, Mating tab width: 0.64 mm, 1 mm, Mating alignment type: polarized, Centerline (pitch): 2.2 mm, 3.2 mm, Row-to-row spacing: 4-Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: bag, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Version straight
Colour natural
Type of locking Yes
Rated voltage 12 V
Pin number 34 pole
Connection crimp connection
Grid 2.2 mm
Number of rows 4
Contact type socket
Additional parts unequipped
Logistics
Customs tariff number 85472000
Country of origin US
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
