1674312-1 | TE Connectivity

Socket, unequipped, 40 pole, straight, 2 rows, natural, 1674312-1

Order No.: 35P8598
EAN: 4099889886511
MPN:
1674312-1

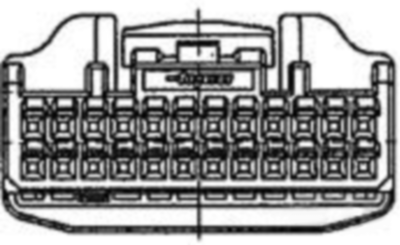

1674312-1 TE Connectivity Automotive Power Connectors Image 1

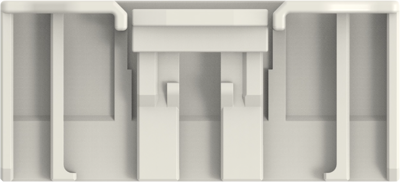

1674312-1 TE Connectivity Automotive Power Connectors Image 2

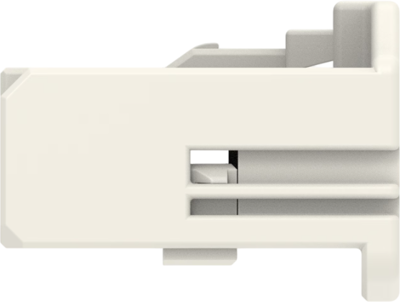

1674312-1 TE Connectivity Automotive Power Connectors Image 3

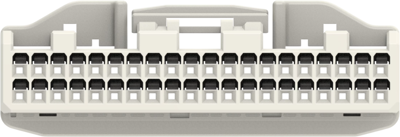

1674312-1 TE Connectivity Automotive Power Connectors Image 4

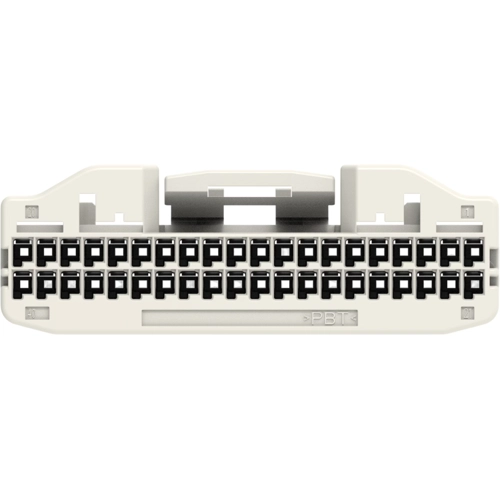

1674312-1 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
2.6775 € *
Available in 5 Days: 754 pcs. - if ordered today
Total Price:
2.68 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.6775 €

Socket housing, 1674312-1, TE Connectivity

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: yes, Primary locking feature: integrated in housing, Number of positions: 40, Number of rows: 2, Operating voltage: 12 VDC, Nominal voltage architecture: 12 V, Body material: PBT, Primary product color: natural, Mating tab width: 0.64 mm, Mating alignment type: polarized, Centerline (pitch): 2.2 mm, Row-to-row spacing: 0.75 mm, 4 mm, 4.5 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: bag, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Version straight
Colour natural
Type of locking Yes
Rated voltage 12 V
Pin number 40 pole
Connection crimp connection
Grid 2.2 mm
Number of rows 2
Contact type socket
Additional parts unequipped
Logistics
Customs tariff number 85472000
Country of origin MX
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
