1612121-4 | TE Connectivity

Socket, unequipped, 2 pole, angled, 1 row, yellow, 1612121-4

Order No.: 35P9081
EAN: 4099889888799
MPN:
1612121-4

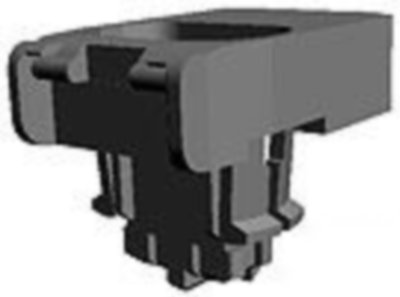

1612121-4 TE Connectivity Automotive Power Connectors Image 1

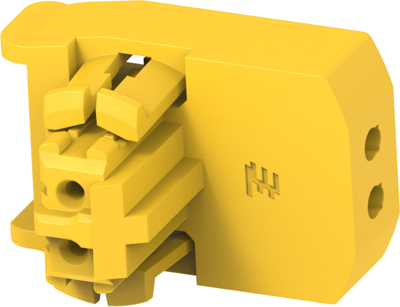

1612121-4 TE Connectivity Automotive Power Connectors Image 2

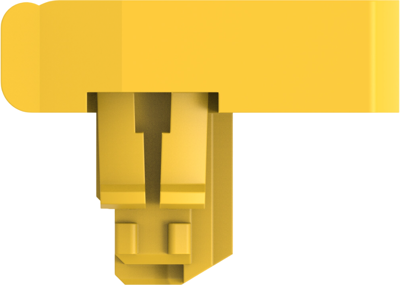

1612121-4 TE Connectivity Automotive Power Connectors Image 3

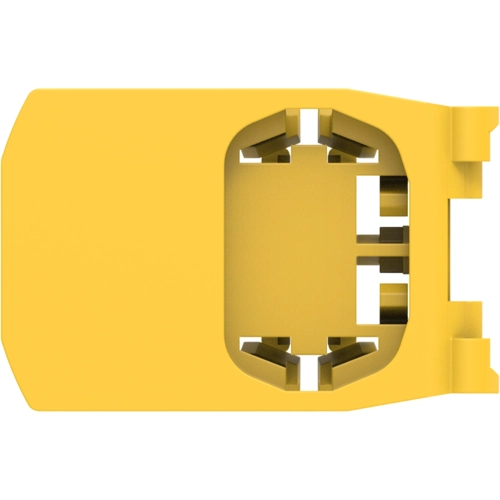

1612121-4 TE Connectivity Automotive Power Connectors Image 4

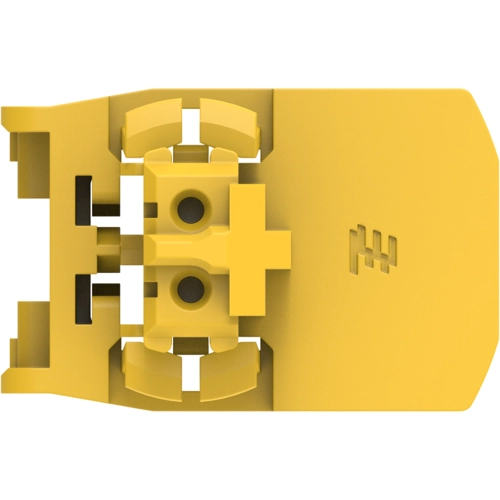

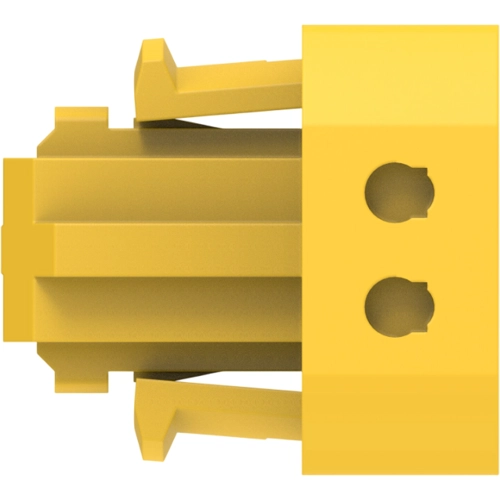

1612121-4 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
0.3451 € *
Standard delivery time from the manufacturer is: 26 Weeks
Total Price:
0.35 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.3451 €

Socket housing, 1612121-4, TE Connectivity

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: no, Number of positions: 2, Number of rows: 1, Body material: PBT, Primary product color: yellow, Mating pin diameter: 1 mm, Mating alignment type: polarized, Centerline (pitch): 3.1 mm, Product height: 19.4 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, Operating temperature range: -30-80 °C, UL flammability rating: UL 94HB, Packaging method: bag, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Version angled
Colour yellow
Type of locking Yes
Rated voltage 12 V
Pin number 2 pole
Grid 3.1 mm
Number of rows 1
Contact type socket
Additional parts unequipped
Logistics
Customs tariff number 85389091
Country of origin DE
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
