1544676-1 | TE Connectivity

Plug, unequipped, 7 pole, straight, 1 row, black, 1544676-1

Order No.: 36P2379
EAN: 4099889897333
MPN:
1544676-1

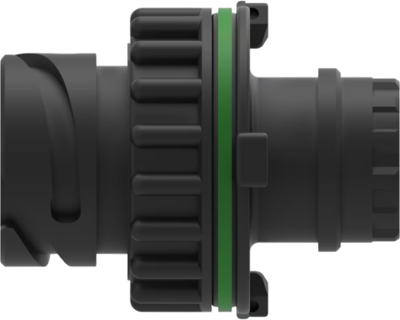

1544676-1 TE Connectivity Automotive Power Connectors Image 1

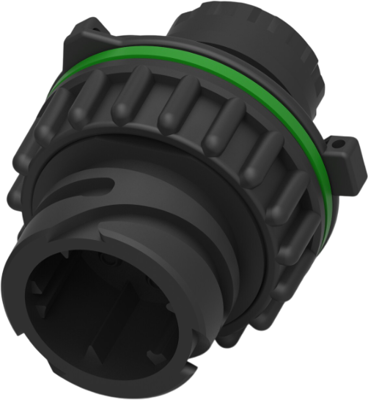

1544676-1 TE Connectivity Automotive Power Connectors Image 2

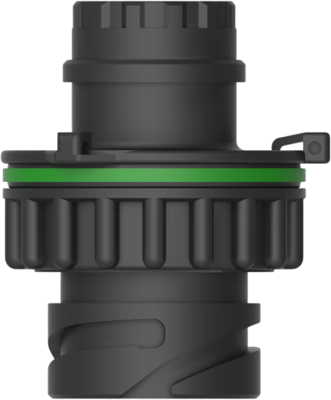

1544676-1 TE Connectivity Automotive Power Connectors Image 3

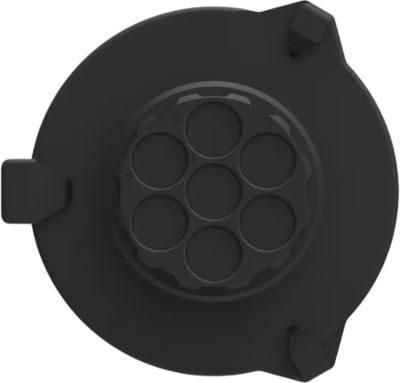

1544676-1 TE Connectivity Automotive Power Connectors Image 4

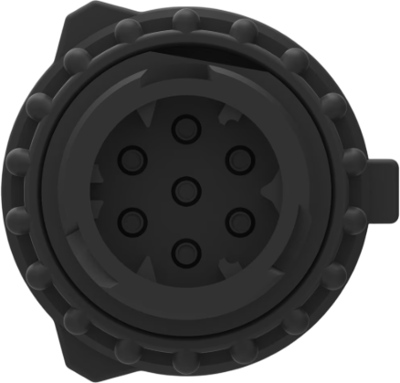

1544676-1 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
2.8322 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
708.05 € *
*incl. VAT plus shipping costs
Subject to prior sale
250 pcs.
2.8322 €

Plug housing, 1544676-1, TE Connectivity

Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 7, Body material: PBT GF, Primary product color: black, Mating pin diameter: 1.5-Mating alignment type: polarized, Product height: 23.6 mm, Circuit application: signal, Packaging method: box, Serviceable: no, Connector position assurance capable: no

Technical specifications
Version straight
Colour black
Type of locking Yes
Rated voltage 14 V
Pin number 7 pole
Number of rows 1
Contact type plug
Additional parts unequipped
Logistics
Customs tariff number 85472000
Country of origin US
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
