1544458-2 | TE Connectivity

Socket, unequipped, 2 pole, straight, 1 row, gray, 1544458-2

Order No.: 36P1994
EAN: 4099889897234
MPN:
1544458-2

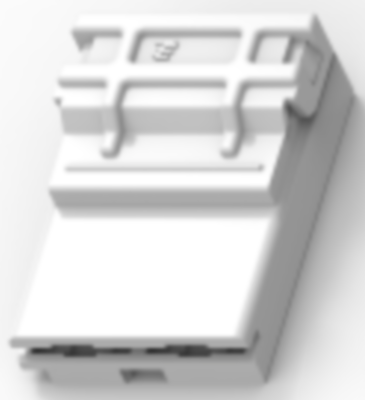

1544458-2 TE Connectivity Automotive Power Connectors Image 1

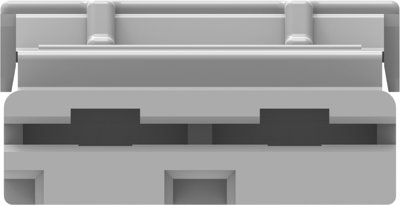

1544458-2 TE Connectivity Automotive Power Connectors Image 2

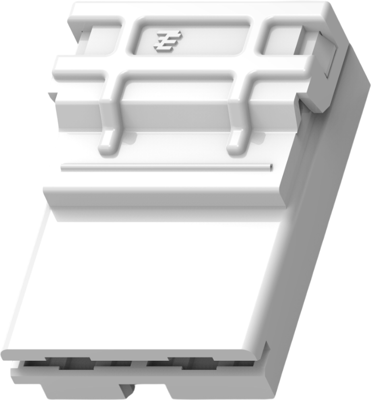

1544458-2 TE Connectivity Automotive Power Connectors Image 3

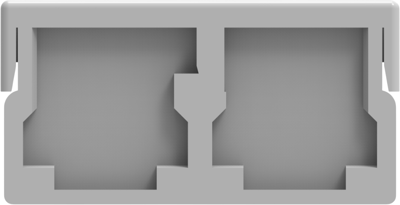

1544458-2 TE Connectivity Automotive Power Connectors Image 4

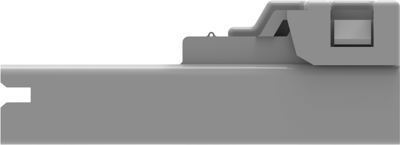

1544458-2 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
0.8330 € *
Available in 5 Days: 1,002 pcs. - if ordered today
Total Price:
208.25 € *
Price list
Quantity
Price per unit*
250 pcs.
0.8330 €
400 pcs.
0.7735 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket housing, 1544458-2, TE Connectivity

Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 2, Number of rows: 1, Body material: PA, Primary product color: gray, Mating tab width: 8 mm, Mating alignment type: polarized, Centerline (pitch): 10.9 mm, Product height: 11.8 mm, Circuit application: power, Packaging method: box, Serviceable: no, Connector position assurance capable: no

Technical specifications
Version straight
Colour gray
Type of locking Yes
Rated voltage 12 V
Pin number 2 pole
Connection crimp connection
Grid 10.9 mm
Number of rows 1
Contact type socket
Additional parts unequipped
Logistics
Customs tariff number 85472000
Country of origin US
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
