1534238-1 | TE Connectivity

Plug, 21 pole, straight, 3 rows, black, 1534238-1

Order No.: 36P4236
EAN: 4099889905779
MPN:
1534238-1
Series: LEAVYSEAL

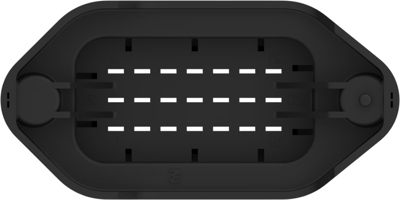

1534238-1 TE Connectivity Automotive Power Connectors Image 1

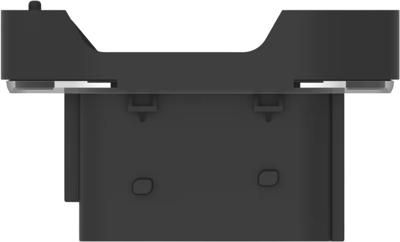

1534238-1 TE Connectivity Automotive Power Connectors Image 2

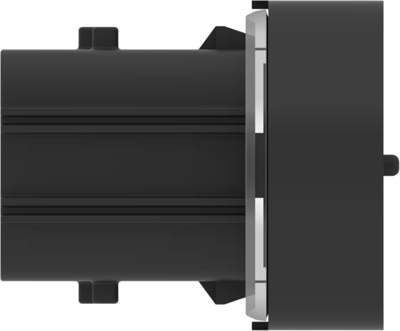

1534238-1 TE Connectivity Automotive Power Connectors Image 3
1534238-1 TE Connectivity Automotive Power Connectors Image 4
Image may differ
Unit Price (€ / pc.)
46.4933 € *
Available in 5 Days: 3,804 pcs. - if ordered today
Total Price:
46.49 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
46.4933 €

Hybrid header, 1534238-1, TE Connectivity

Hybrid header: no, Sealable: yes, Connector & contact terminates to: printed circuit board, Number of positions: 21, PCB mount orientation: vertical, Number of rows: 3, Nominal voltage architecture: 12 V, 24 V, Primary product color: black, Mating tab width: 2.8 mm, Mating tab thickness: 0.8 mm, Contact mating area plating material: silver (Ag), Termination method to printed circuit board: through hole-solder, PCB mount retention type: boardlock, Centerline (pitch): 5 mm, Width: 38 mm, Operating temperature (max): 100 °C, 105 °C, 110 °C, 120 °C, 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, Operating temperature range: -40-120 °C, Circuit application: signal, Degree of protection: IP67, IP69K, Packaging quantity: 105

Technical specifications
Version straight
Colour black
Type of locking Yes
Rated voltage 28 V
contact surface silver-plated
Pin number 21 pole
Connection solder connection
Grid 5 mm
Number of rows 3
Rated current 40 A
Contact type plug
Logistics
Customs tariff number 85366910
Country of origin US
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
