1488991-1 | TE Connectivity

Socket, unequipped, 3 pole, straight, 1 row, black, 1488991-1

Order No.: 35P9652
EAN: 4099889890587
MPN:
1488991-1
Series: MCON

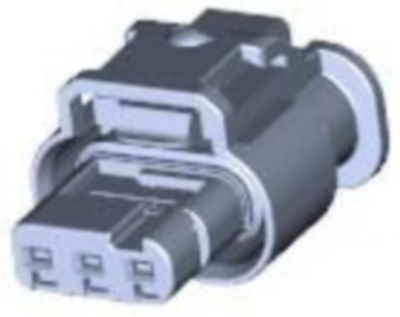

1488991-1 TE Connectivity Automotive Power Connectors Image 1

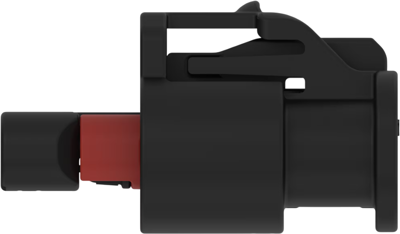

1488991-1 TE Connectivity Automotive Power Connectors Image 2

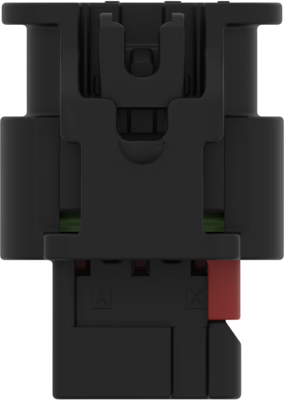

1488991-1 TE Connectivity Automotive Power Connectors Image 3
1488991-1 TE Connectivity Automotive Power Connectors Image 4
1488991-1 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
2.3800 € *
Available in 5 Days: 115 pcs. - if ordered today
Total Price:
2.38 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3800 €
10 pcs.
2.1658 €
50 pcs.
1.9516 €
100 pcs.
1.7493 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket housing, 1488991-1, TE Connectivity

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 3, Number of rows: 1, Body material: PA GF, Primary product color: black, Mating tab width: 1.2 mm, Mounting feature: without, Polarized, Centerline (pitch): 4-Height: 15.6 mm, Length: 19 mm, Width: 26.5 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, Operating temperature range: -40-125 °C, -40-125 °C, Circuit application: signal, Degree of protection: IP67, Packaging method: package, Packaging quantity: 1, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Version straight
Colour black
Type of locking Yes
Rated voltage 24 V
Pin number 3 pole
Connection crimp connection
Grid 4 mm
Number of rows 1
Contact type socket
Additional parts unequipped
Logistics
Customs tariff number 85472000
Country of origin DE
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
