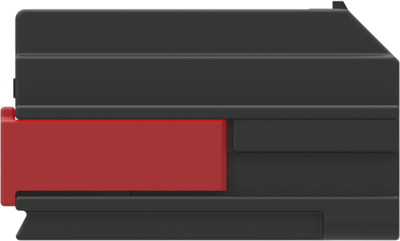

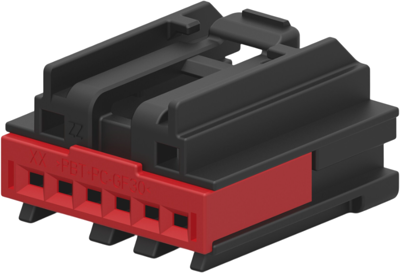

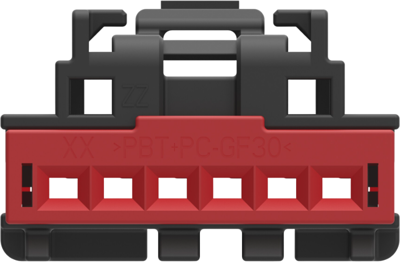

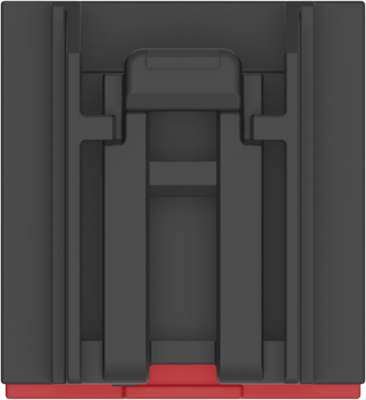

Socket housing, 1456985-5, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 6, Number of rows: 1, Cable exit angle: 180°, Body material: PA GF, Primary product color: black, Mating tab width: 1 mm, Mounting feature: without, Polarized, Centerline (pitch): 2.54 mm, Height: 13.35 mm, Length: 23.4 mm, Width: 18.55 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, Operating temperature range: -40-100 °C, Circuit application: signal, Agency/standard: SAE/USCAR-2, UL flammability rating: UL 94-HB, Packaging method: package, Packaging quantity: 1, Serviceable: yes, Connector position assurance capable: yes
